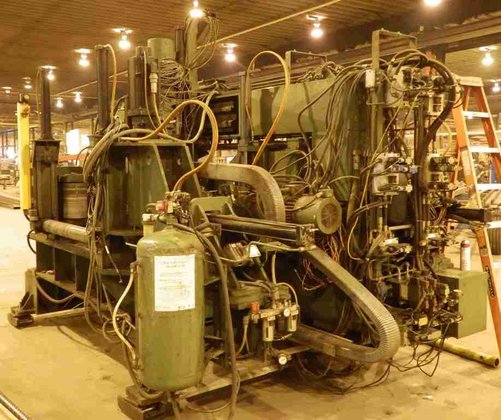

1989 FRANKLIN HD-145 1-9/16" x
Location:
Holland, OH
Manufacturer:
Franklin
Model:
HD-145
Capacity:
1-9/16" (#4 MORSE)

Specifications

Condition:
used
Year:
1989
Stock number:
62388
Serial:
2910
Drill speeds:
0-1,800 RPM
Conveyor height:
30"
Year of rebuild:
2006
Maximum beam depth:
40"
Minimum beam depth:
6"
Rapid advance (web):
420 IPM
Drill capacity (web):
1-9/16" (#4 MORSE)
Maximum x axis speed:
130 FPM
Infeed conveyor length:
40'
Maximum beam with/foot:
300 LBS
Outfeed conveyor length:
40'
Rapid advance (flanges):
420 IPM
Drill capacity (flanges):
1-9/16" (#4 MORSE)
Cross feed conveyor length:
18' TO BACK OF CONVEYOR
Motor capacities (hydraulic):
3 @ 12 HP
Spindle motors (ac variable):
10 HP
Retract speed (web and flanges):
420 IPM
Beam feed rate in x-axis (maximum):
100 FPM
Subcategory:
Drill
Subcategory 2:
Drill- multi spindle

Description

SERIAL ......................................... 2910
MODEL .......................................... HD-145
YEAR OF MFG .................................... 1989
YEAR OF REBUILD ................................ 2006
DRILL CAPACITY (WEB) ........................... 1-9/16" (#4 MORSE)
DRILL CAPACITY (FLANGES) ....................... 1-9/16" (#4 MORSE)
MAXIMUM BEAM WITH/FOOT ......................... 300 LBS
MAXIMUM BEAM DEPTH ............................. 40"
MINIMUM BEAM DEPTH ............................. 6"
BEAM FEED RATE IN X-AXIS (MAXIMUM) ............. 100 FPM
RAPID ADVANCE (WEB) ............................ 420 IPM
RAPID ADVANCE (FLANGES) ........................ 420 IPM
RETRACT SPEED (WEB AND FLANGES) ................ 420 IPM
SPINDLE MOTORS (AC VARIABLE) ................... 10 HP
MOTOR CAPACITIES (HYDRAULIC) .................... 3 @ 12 HP
DRILL FEED RATES (CNC CONTROLLED & MONITORED) ... 0-30" IPM
DRILL SPEEDS .................................... 0-1,800 RPM
CROSS FEED CONVEYOR LENGTH ...................... 18' TO BACK OF CONVEYOR
INFEED CONVEYOR LENGTH .......................... 40'
OUTFEED CONVEYOR LENGTH ......................... 40'
CONVEYOR HEIGHT ................................. 30"
EQUIPPED WITH:
THRU SPINDLE COOLANT
LINEAR TRANSDUCER POSITION FEED BACK
FRANKLIN HD-532-20 HP HYDRAULIC POWER UNIT
FRANKLIN HD-532-20 HP HYDRAULIC POWER UNIT
PROGRAMMABLE INDUSTRIAL CONTROLLER SYSTEM
COOLANT SYSTEM FOR THE HIGH PRESSURE MIST COOLANT THROUGH THE BIT
DUAL AXIS PINCH ROLL DRIVE FOR INFEED & OUTFEED MEASURING
MAXIMUM X AXIS SPEED ............................ 130 FPM
