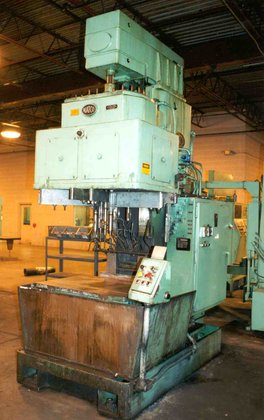

Natco G316B 24 SPINDLE #G316
Location:
Holland, OH
Manufacturer:
Natco
Model:
G316B

Specifications

Condition:
used
Stock number:
13294
New:
1974
Serial:
G316B-157
Spindle speeds:
(36) 140-2376 RPM
Feed rate range:
1 - 20 IPM
Table work area:
40" X 30"
Number of spindles:
24
Vertical head stroke:
18"
Drilling area of head:
19" X 32"
Upper driver diameter:
1-1/2"
Head flange to table top:
41" MAX. / 13" MIN.
Vertical table adjustment:
10"
Subcategory:
Drill
Subcategory 2:
Drill- multi spindle

Description

SERIAL .......................... G316B-157
MODEL ........................... G316B
NEW ............................. 1974
NUMBER OF SPINDLES .............. 24
UPPER DRIVER DIAMETER ........... 1-1/2"
HEAD FLANGE TO TABLE TOP ........ 41" MAX. / 13" MIN.
DRILLING AREA OF HEAD ........... 19" X 32"
CENTER OF HEAD TO COLUMN WAYS ... 15.5"
TABLE WORK AREA ................. 40" X 30"
VERTICAL HEAD STROKE ............ 18"
VERTICAL TABLE ADJUSTMENT ....... 10"
FEED RATE RANGE ................. 1 - 20 IPM
SPINDLE SPEEDS .................. (36) 140-2376 RPM
LUBE SYSTEM
COOLANT
15 HORSEPOWER SPINDLE MOTOR
5 HORSEPOWER HYDRAULIC UNIT
