Top Seller

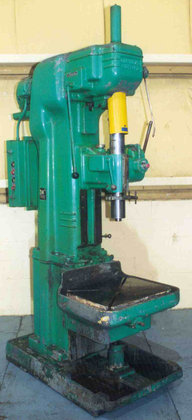

Cincinnati Bickford 24 " SINGLE
Location:
Holland, OH
Manufacturer:
Cincinnati
Model:
24

Specifications

Condition:
used
Stock number:
1511
Feeds:
(8) .004 TO .040 IPR (VIA CHANGE GEARS)
Serial:
2ND-368
Area of table:
24" X 19"
Spindle speeds:
(16) 50 TO 1200 RPM (VIA CHANGE GEARS)
Spindle travel:
11"
Depth of throat:
12"
Taper in spindle:
#5 MT
Distance spindle to table:
5" MINIMUM, 34" MAXIMUM
Subcategory:
Drill
Subcategory 2:
Drill- single spindle

Description

SERIAL ................. 2ND-368
DEPTH OF THROAT ........ 12"
AREA OF TABLE .......... 24" X 19"
SPINDLE SPEEDS ......... (16) 50 TO 1200 RPM (VIA CHANGE GEARS)
FEEDS .................. (8) .004 TO .040 IPR (VIA CHANGE GEARS)
SPINDLE TRAVEL ......... 11"
DIAMETER OF SPINDLE .... 4"
TAPER IN SPINDLE ....... #5 MT
DISTANCE SPINDLE TO TABLE ..... 5" MINIMUM, 34" MAXIMUM
VERTICAL ADJUSTMENT OF HEAD ... (3) POSITION 6" CENTERS
VERTICAL ADJUSTMENT OF TABLE .. (8) POSITION 3" CENTERS
FORWARD & REVERSE
7-1/2 HORSEPOWER RPM MAIN MOTOR
