Top Seller

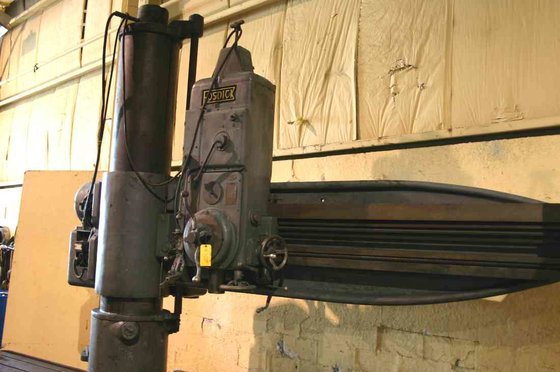

Fosdick 08 X 19 8'
Location:
Holland, OH
Manufacturer:
Fosdick
Model:
08 X 19

Specifications

Condition:
used
Stock number:
4308
Feeds:
(13) .003 TO .125 IPR
Serial:
12715W
Tap leads:
(5) 8, 11-1/2, 14, 18, 27 TPI
Area of base:
102" X 50"
Spindle speeds:
(36) 14 TO 1450 RPM
Spindle travel:
18"
Taper in spindle:
#6MT
Diameter of spindle:
4-11/16"
Travel of head on arm:
78"
Travel of arm on column:
43"
Distance spindle to base:
15" MINIMUM, 78" MAXIMUM
Subcategory:
Radial drills

Description

SERIAL ........................... 12715W
AREA OF BASE ..................... 102" X 50"
SPINDLE SPEEDS ................... (36) 14 TO 1450 RPM
SPINDLE TRAVEL ................... 18"
FEEDS ............................ (13) .003 TO .125 IPR
TAP LEADS ........................ (5) 8, 11-1/2, 14, 18, 27 TPI
DIAMETER OF SPINDLE .............. 4-11/16"
DISTANCE SPINDLE TO BASE ......... 15" MINIMUM, 78" MAXIMUM
TAPER IN SPINDLE ................. #6MT
TRAVEL OF ARM ON COLUMN .......... 43"
TRAVEL OF HEAD ON ARM ............ 78"
20 HORSEPOWER MAIN MOTOR
