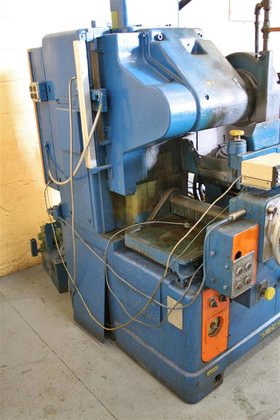

Heald 261 16" # HORIZONTAL
Location:
Holland, OH
Model:
Heald 261

Specifications

Condition:
used
Stock number:
61571
Serial:
35940
Pick feed:
YES
Main motor:
15 HP
Chuck guard:
YES
Table angle:
17 DEG / 10 DEG
Chuck speeds:
50 - 225 RPM
Table speeds:
0 - 12 FPM
Wheel speeds:
1640 RPM
Coolant motor:
1/2 HP
Chuck diameter:
16 7/8"
Coolant system:
YES
Dressing cycle:
YES
Grinding stroke:
8"
Spark out timer:
YES
Coolant capacity:
45 GALLONS
Coarse / fine feed:
YES
Swing inside guard:
18 1/2"
Grinding capability:
YES
Standard wheel size:
14" x 1" x 5" BORE
Handwheel increments:
0.050"
Power feed increments:
0.0001" - 0.0005"
Graduation of feed dial:
0.001"
Chuck to face of wheel (max):
13"
Table travel (for positioning):
12"
Subcategory:
Grinder

Description

SERIAL ............................. 35940
CHUCK DIAMETER ..................... 16 7/8"
SWING INSIDE GUARD ................. 18 1/2"
STANDARD WHEEL SIZE ................ 14" x 1" x 5" BORE
CHUCK TO FACE OF WHEEL (MAX) ....... 13"
TABLE TRAVEL (FOR POSITIONING) ..... 12"
GRINDING STROKE .................... 8"
TABLE ANGLE ........................ 17 DEG / 10 DEG
CHUCK SPEEDS ....................... 50 - 225 RPM
WHEEL SPEEDS ....................... 1640 RPM
TABLE SPEEDS ....................... 0 - 12 FPM
HANDWHEEL INCREMENTS ............... 0.050"
GRADUATION OF FEED DIAL ............ 0.001"
POWER FEED INCREMENTS .............. 0.0001" - 0.0005"
ELECTROMAGNETIC CHUCK W/CONTROLS ... YES
GRINDING CAPABILITY ................ YES
PICK FEED .......................... YES
DRESSING CYCLE ..................... YES
COOLANT SYSTEM ..................... YES
COOLANT CAPACITY ................... 45 GALLONS
CHUCK GUARD ........................ YES
COARSE / FINE FEED ................. YES
SPARK OUT TIMER .................... YES
MAIN MOTOR ......................... 15 HP
COOLANT MOTOR ...................... 1/2 HP
