Top Seller

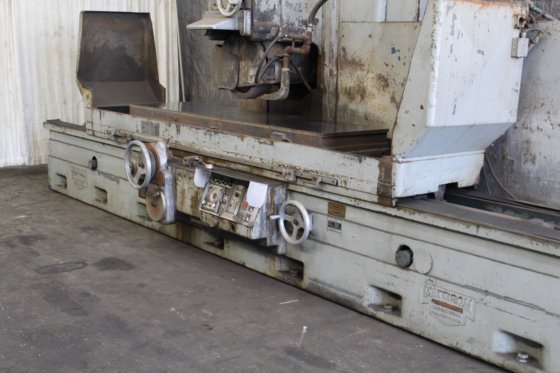

Mattison 24 X 96 24"
Location:
Holland, OH
Model:
24 X 96

Specifications

Condition:
used
Stock number:
58851
Serial:
20648
Spindle motor:
30 HORSEPOWER
Spindle speed:
1160 RPM
Hydraulic motor:
15 HORSEPOWER
Power elevation:
25"
Grinding capacity:
24" X 96"
Automatic crossfeed:
24"
Grinding wheel size:
20" X 6" X 5"
Incremental downfeed:
YES
Automatic lubrication:
YES
Table area (t-slotted):
24" X 102"
Table speeds (variable):
30 TO 100 FPM
Longitudinal table travel:
102"
Coolant with slug conveyor:
YES
Jump feed longitudinal & cross:
YES
Electro-magnetic chuck controls:
NEUTROFIER II
Maximum work height under wheel:
30"
Over the wheel hydraulic dresser:
YES
Electro-magnetic chuck , fine line:
24" X 101" X 5-1/4"
Subcategory:
Grinder

Description

SERIAL .................................... 20648
GRINDING CAPACITY ......................... 24" X 96"
MAXIMUM WORK HEIGHT UNDER WHEEL ........... 30"
TABLE AREA (T-SLOTTED) .................... 24" X 102"
ELECTRO-MAGNETIC CHUCK , FINE LINE ........ 24" X 101" X 5-1/4"
GRINDING WHEEL SIZE ....................... 20" X 6" X 5"
SPINDLE SPEED ............................. 1160 RPM
TABLE SPEEDS (VARIABLE) ................... 30 TO 100 FPM
LONGITUDINAL TABLE TRAVEL ................. 102"
INCREMENTAL DOWNFEED ...................... YES
AUTOMATIC CROSSFEED ....................... 24"
POWER ELEVATION ........................... 25"
JUMP FEED LONGITUDINAL & CROSS ............ YES
OVER THE WHEEL HYDRAULIC DRESSER .......... YES
ELECTRO-MAGNETIC CHUCK CONTROLS ........... NEUTROFIER II
COOLANT WITH SLUG CONVEYOR ................ YES
AUTOMATIC LUBRICATION ..................... YES
HYDRAULIC MOTOR ........................... 15 HORSEPOWER
SPINDLE MOTOR ............................. 30 HORSEPOWER
