Top Seller

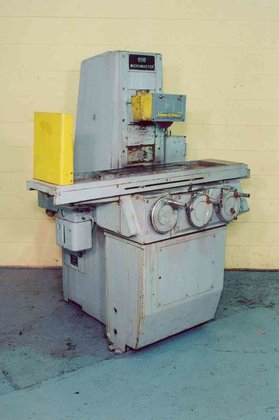

Brown & Sharpe 8 X
Location:
Holland, OH
Model:
8 X 24

Specifications

Condition:
used
Stock number:
17098
Serial:
523-6182-
Coolant:
YES
Model 2:
618 MICROMASTER
Spindle motor:
1 HORSEPOWER
Hydraulic motor:
1 HORSEPOWER
Power elevation:
YES
Grinding capacity:
6" X 18"
Grinding wheel size:
8" X 3/4"
Maximum work height:
15"
Grinding wheel speed:
2860 RPM
Automatic cross travel:
01" TO .25" HYDRAULIC FEED
Table speed (variable):
5 TO 100 FPM
Variable chuck control:
YES
Continuous cross travel:
10 IPM
Electro-magnetic chuck size:
18" X 6" X 4"
Subcategory:
Grinder

Description

SERIAL ........................... 523-6182-
MODEL ............................ 618 MICROMASTER
GRINDING CAPACITY ................ 6" X 18"
MAXIMUM WORK HEIGHT .............. 15"
GRINDING WHEEL SIZE .............. 8" X 3/4"
ELECTRO-MAGNETIC CHUCK SIZE ...... 18" X 6" X 4"
VARIABLE CHUCK CONTROL ........... YES
TABLE SPEED (VARIABLE) ........... 5 TO 100 FPM
GRINDING WHEEL SPEED ............. 2860 RPM
AUTOMATIC CROSS TRAVEL ........... .01" TO .25" HYDRAULIC FEED
CONTINUOUS CROSS TRAVEL .......... 10 IPM
POWER ELEVATION .................. YES
COOLANT .......................... YES
SPINDLE MOTOR .................... 1 HORSEPOWER
HYDRAULIC MOTOR .................. 1 HORSEPOWER
