Top Seller

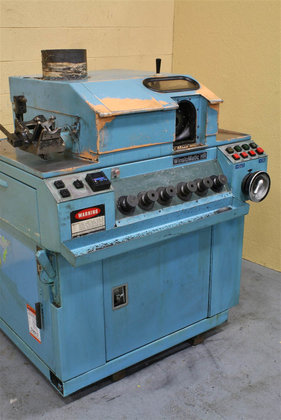

HR 1.5" BICKFORD WINSLOMATIC MODEL
Location:
Holland, OH
Manufacturer:
N/A
Model:
HR

Specifications

Condition:
used
Stock number:
54996
New:
1981
Racon:
1/8" to 1"
Serial:
947-0010
Helical:
1/16" to 1-1/2"
Bickford:
1/8" to 1"
Split/web:
1/16" to 1-1/2"
Step drills:
3/32" to 1/2"
Conventional:
1/16" to 1"
Point angles:
60 to 160 degrees
Spindle motor:
1 HP, 1800 RPM
Grinding wheel:
12" DIAMETER
Wide-web helical:
1/16" to 1-1/2"
3 & 4 fluted drills:
1/16" to 1-1/2"
Pyrcon (four facet):
1/16" to 1"
Max hourly production:
120 drills @ 5/16"(8 mm)
Subcategory:
Grinders

Description

SERIAL ........................ 947-0010
MODEL ......................... HR
NEW ........................... 1981
MAX HOURLY PRODUCTION ......... 120 drills @ 5/16"(8 mm)
POINT ANGLES .................. 60 to 160 degrees
DRILL POINT TYPES AND DIAMETERS GROUND:
HELICAL ....................... 1/16" to 1-1/2"
WIDE-WEB HELICAL .............. 1/16" to 1-1/2"
BICKFORD ...................... 1/8" to 1"
RACON ......................... 1/8" to 1"
PYRCON (FOUR FACET) ........... 1/16" to 1"
CONVENTIONAL .................. 1/16" to 1"
SPLIT/WEB ..................... 1/16" to 1-1/2"
STEP DRILLS ................... 3/32" to 1/2"
3 & 4 FLUTED DRILLS ........... 1/16" to 1-1/2"
GRINDING WHEEL ................ 12" DIAMETER
SPINDLE MOTOR ................. 1 HP, 1800 RPM
