Location:
Holland, OH, USA
Price:
No price
Manufacturer:

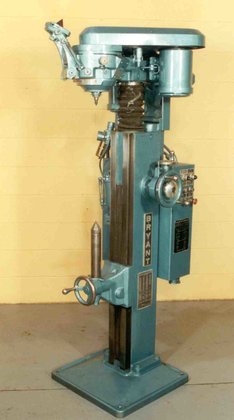

Bryant
Model:
002 X 042

Specifications

Condition:
used
Serial number:
C13910
Stock number:
14961
Planetary drive speed:
400 RPM
Grinding spindle speeds:
13000/21500/45000 RPM
Work piece length range:
42" TO 2"
Maximum center hole ground:
2"
Minimum center hole ground:
.050"
Angular grinding stroke range:
.005" TO .100"
Tailstock center to column face:
6.2"
Cone angle of center hole ground:
60 DEGREES
Subcategory:
Grinders
Subcategory 2:
All types

Description

SERIAL ............................ C-13910
WORK PIECE LENGTH RANGE ........... 42" TO 2"
TAILSTOCK CENTER TO COLUMN FACE ... 6.2"
MAXIMUM CENTER HOLE GROUND ........ 2"
MINIMUM CENTER HOLE GROUND ........ .050"
GRINDING SPINDLE SPEEDS ........... 13000/21500/45000 RPM
PLANETARY DRIVE SPEED ............. 400 RPM
ANGULAR GRINDING STROKE RANGE ..... .005" TO .100"
CONE ANGLE OF CENTER HOLE GROUND .. 60 DEGREES
PIVOTING HEADSTOCK CENTER
1/4 HORSEPOWER PLANETARY DRIVE MOTOR
1/2 HORSEPOWER SPINDLE MOTOR
