Top Seller

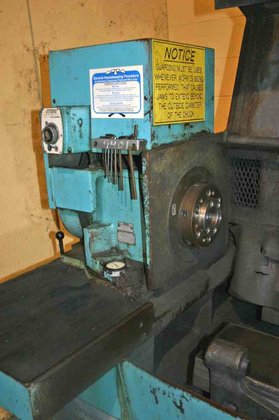

Bryant 23 " INTERNAL UNIVERSAL
Location:
Holland, OH
Manufacturer:
Bryant
Model:
23

Specifications

Condition:
used
Stock number:
51523
Serial:
15682
Model 2:
UNIVERSAL
Year new:
1977
Hyraulic motor:
3 HORSEPOWER
Spindle speeds:
50 TO 425 RPM
Longitudinal travel:
20"
Coolant tank capacity:
50 GALLON
Traverse speeds (table):
0 TO 25 FPM
Wheelhead spindle motor:
5 HORSEPOWER
Workhead cross slide travel:
15-1/2"
Maximum worhead swivel angle:
90 DEGREES
Wheelslide cross feed travel:
1-1/2"
Maximum swing over over table:
23"
Power cross feeds, increments:
00025 TO .001
Swing with workhead swivelled:
12"
Swing inside coolant splash guard:
16"
Subcategory:
Grinders

Description

SERIAL ................................ 15682
MODEL ................................. UNIVERSAL
YEAR NEW .............................. 1977
MAXIMUM SWING OVER OVER TABLE ......... 23"
SWING WITH WORKHEAD SWIVELLED ......... 12"
SWING INSIDE COOLANT SPLASH GUARD ..... 16"
SPINDLE SPEEDS ........................ 50 TO 425 RPM
TRAVERSE SPEEDS (TABLE) ............... 0 TO 25 FPM
POWER CROSS FEEDS, INCREMENTS ......... .00025 TO .001
LONGITUDINAL TRAVEL ................... 20"
WHEELSLIDE CROSS FEED TRAVEL .......... 1-1/2"
WORKHEAD CROSS SLIDE TRAVEL ........... 15-1/2"
MAXIMUM WORHEAD SWIVEL ANGLE .......... 90 DEGREES
COOLANT TANK CAPACITY ................. 50 GALLON
WHEELHEAD SPINDLE MOTOR ............... 5 HORSEPOWER
HYRAULIC MOTOR ........................ 3 HORSEPOWER
