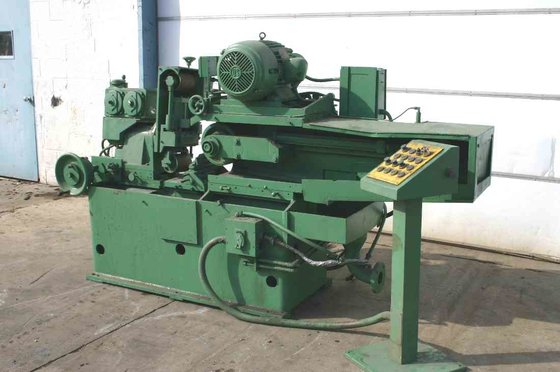

Production 006 in Holland, OH, USA

Location:
Holland, OH, USA
Price:
No price
Manufacturer:
Model:
006
Weight:
750 LBS

Specifications

Condition:
used
Serial number:
N/A
Stock number:
18700
Capacity:
3/8" TO 6"
Grinding belt:
108" X 5"
Regulating belt:
54" X 5"
Contact wheel size:
12" X 5"
Grinding belt speed:
3500 SFPM
Regulating belt speed:
VARIABLE
Equipped with infeed & output powered conveyor system capacity:
3/8" TO 6" DIAMETER
Equipped with infeed & output powered conveyor system feed angle:
0 TO 15 DEGREES
Equipped with infeed & output powered conveyor system idler rolls:
12" - 3" DIAMETER
Equipped with infeed & output powered conveyor system speed range:
70/350 RPM
Equipped with infeed & output powered conveyor system roll spacing:
22-7/8" C.D.
Equipped with infeed & output powered conveyor system powered rolls:
5" - 3" DIAMETER
Equipped with infeed & output powered conveyor system length capacity:
48" MINIMUM
Equipped with infeed & output powered conveyor system weight capacity:
750 LBS
Subcategory:
Grinders
Subcategory 2:
All types

Description

S/N ................................. N/A
CAPACITY ............................ 3/8" TO 6"
GRINDING BELT ....................... 108" X 5"
GRINDING BELT SPEED ................. 3500 SFPM
REGULATING BELT ..................... 54" X 5"
REGULATING BELT SPEED ............... VARIABLE
CONTACT WHEEL SIZE .................. 12" X 5"
EQUIPPED WITH INFEED & OUTPUT POWERED CONVEYOR SYSTEM:
CAPACITY ......................... 3/8" TO 6" DIAMETER
LENGTH CAPACITY .................. 48" MINIMUM
WEIGHT CAPACITY .................. 750 LBS
SPEED RANGE ...................... 70/350 RPM
FEED ANGLE ....................... 0 TO 15 DEGREES
POWERED ROLLS .................... 5" - 3" DIAMETER
IDLER ROLLS ...................... 12" - 3" DIAMETER
ROLL SPACING ..................... 22-7/8" C.D.
3/4 HORSEPOWER V S DRIVE MOTOR
25 HORSEPOWER MAIN MOTOR
7-1/2 HORSEPOWER HYDRAULIC UNIT MOTOR
1/2 HORSEPOWER COOLANT PUMP AND TANK WITH FILTER

COMPLETE WITH:
ENTRY & EXIT CONVEYOR
