Top Seller

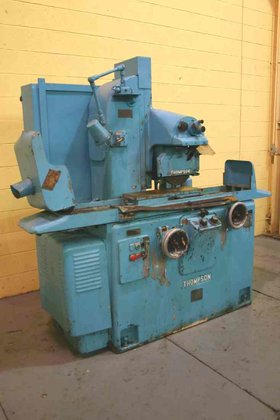

Thompson 08 X 024 8"
Location:
Holland, OH
Model:
08 X 024

Specifications

Condition:
used
Stock number:
18584
Serial:
2F652640
Coolant:
YES
Model 2:
2F
Chuck size:
8" X 24" X 3" HT
Table travel:
29"
Spindle motor:
3 HORSEPOWER
Hydraulic motor:
1-1/2 HORSEPOWER
Power elevation:
YES
Cross feed range:
010 TO .375 IPM
Grinding capacity:
24" X 8"
Grinding wheel size:
12" X 3/4" X 3" HOLE
Grinding wheel speed:
5,400 SFPM
Table speed, variable:
5 TO 75 FPM
Height under new wheel:
12-1/2"
Over the wheel dresser:
YES
Wheel head cross travel:
9"
Subcategory:
Grinders

Description

SERIAL .............................. 2F652640
MODEL ............................... 2F
GRINDING CAPACITY ................... 24" X 8"
HEIGHT UNDER NEW WHEEL .............. 12-1/2"
TABLE TRAVEL ........................ 29"
WHEEL HEAD CROSS TRAVEL ............. 9"
TABLE SPEED, VARIABLE ............... 5 TO 75 FPM
CROSS FEED RANGE .................... .010 TO .375 IPM
CHUCK SIZE .......................... 8" X 24" X 3" HT
GRINDING WHEEL SIZE ................. 12" X 3/4" X 3" HOLE
GRINDING WHEEL SPEED ................ 5,400 SFPM
POWER ELEVATION ..................... YES
OVER THE WHEEL DRESSER .............. YES
COOLANT ............................. YES
HYDRAULIC MOTOR ..................... 1-1/2 HORSEPOWER
SPINDLE MOTOR ....................... 3 HORSEPOWER
