Top Seller

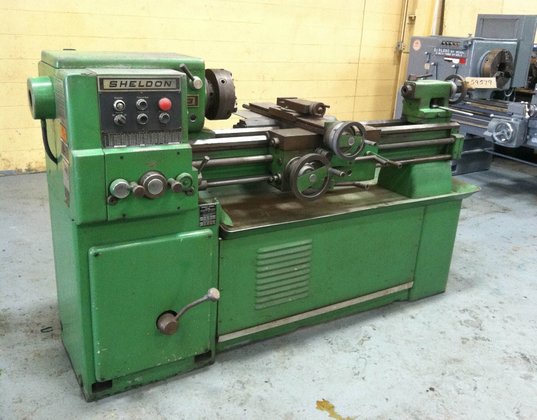

1974 Sheldon 13 X 042
Location:
Holland, OH
Manufacturer:
Sheldon
Model:
13 X 042 MDL R13-6
Distance between Centers:
42"

Specifications

Condition:
used
Year:
1974
Stock number:
59579
Chuck:
10" 4 JAW
Feeds:
(80) .00050 TO .120 IPR
Motor:
5 HP
Serial:
32746
Weight:
3,100 LBS
Model 2:
R-13-6
Threads:
4 TO 960 TPI
Hardways:
YES
Dimensions:
7' X 4' X 4'6" H
Thread dial:
YES
Spindle speeds:
(16) 32 - 1800 RPM
Swing over ways:
13"
Taper attachment:
YES
Swing over cross slide:
8"
Diameter of spindle hole:
1-3/4"
Distance between centers:
42"
Subcategory:
Lathe- engine

Description

SERIAL........................ 32746
MODEL ........................ R-13-6
NEW IN........................ 1974
SWING OVER WAYS .............. 13"
SWING OVER CROSS SLIDE ....... 8"
DISTANCE BETWEEN CENTERS...... 42"
SPINDLE SPEEDS ............... (16) 32 - 1800 RPM
FEEDS ........................ (80) .00050 TO .120 IPR
THREADS ...................... 4 TO 960 TPI
DIAMETER OF SPINDLE HOLE...... 1-3/4"
CHUCK ........................ 10" 4 JAW
HARDWAYS ..................... YES
TAPER ATTACHMENT ............. YES
THREAD DIAL .................. YES
MOTOR ........................ 5 HP
DIMENSIONS ................... 7' X 4' X 4'6" H
WEIGHT ....................... 3,100 LBS
