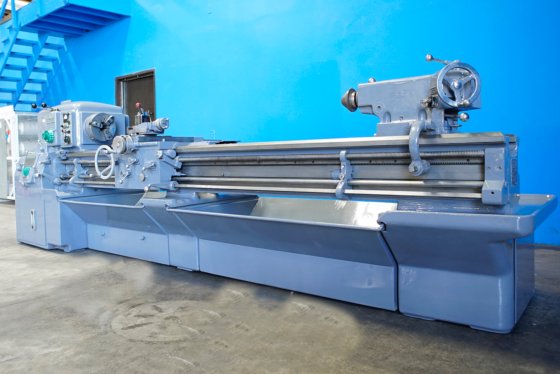

Monarch 16 X 102 MDL
Location:
Holland, OH
Manufacturer:
Monarch lathes
Model:
16 X 102 MDL 610
Spindle Nose:
D1-6

Specifications

Condition:
used
Stock number:
62777
Chuck:
3 JAW
Feeds:
0.001" TO 0.068"
Serial:
46878
Model 2:
610
Horsepower:
10
Spindle nose:
D1-6
Threads, inch:
2 TO 120 TPI
Spindle speeds:
(36) 12 TO 1,500 RPM
Swing over bed:
16"
Center distance:
102"
Taper attachment:
YES
Cross slide travel:
8"
Hole through spindle:
2"
Tailstock quill taper:
#4 MT
Swing over cross slide:
10"
Tailstock quill travel:
6"
Subcategory:
Lathe- engine

Description

SERIAL ...................... 46878
MODEL ....................... 610
SWING OVER BED .............. 16"
SWING OVER CROSS SLIDE ...... 10"
CENTER DISTANCE ............. 102"
SPINDLE SPEEDS .............. (36) 12 TO 1,500 RPM
SPINDLE NOSE ................ D1-6
HOLE THROUGH SPINDLE ........ 2"
THREADS, INCH ............... 2 TO 120 TPI
FEEDS ....................... 0.001" TO 0.068"
CROSS SLIDE TRAVEL .......... 8"
TAILSTOCK QUILL TRAVEL ...... 6"
TAILSTOCK QUILL TAPER ....... #4 MT
CHUCK ....................... 3 JAW
TAPER ATTACHMENT ............ YES
HORSEPOWER .................. 10
