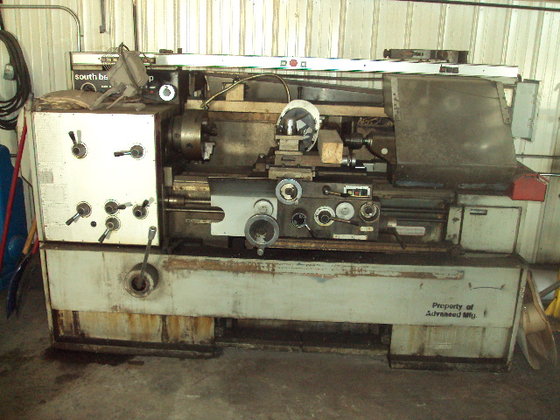

Southbend 16 X 030 16"
Location:
Holland, OH
Manufacturer:
Southbend
Model:
16 X 030

Specifications

Condition:
used
Stock number:
57625
Motor:
10/75 HP / 480 / 3 / 60
Serial:
GP 77104TM
Spindle:
6" DI CAM LOCK
16 speeds:
40 - 2000 RPM
Hard ways:
YES
3 jaw chuck:
10"
4 mt centers:
YES
Spindle hole:
13/4"
42 long feeds:
0015 - 126"
54 us threads:
48 TPI - 13/16 TPI
42 cross feeds:
00075 - .063"
Swing over bed:
16-1/2"
Saddle travel max:
28"
Swing cross slide:
9-1/4"
Cross slide travel:
9-1/32"
Indexable square tool post:
5"
Subcategory:
Lathe- engine

Description

SERIAL ........................... GP 77104TM
SWING OVER BED ................... 16-1/2"
SWING CROSS SLIDE ................ 9-1/4"
SPINDLE HOLE ..................... 13/4"
SPINDLE .......................... 6" DI CAM LOCK
16 SPEEDS ........................ 40 - 2000 RPM
42 LONG FEEDS .................... .0015 - 126"
42 CROSS FEEDS ................... .00075 - .063"
54 US THREADS .................... 48 TPI - 13/16 TPI
SADDLE TRAVEL MAX ................ 28"
CROSS SLIDE TRAVEL ............... 9-1/32"
HARD WAYS ........................ YES
4 MT CENTERS ..................... YES
6 SEQUENCE AUTO CYCLE TRACER COPY SLIDE
INDEXABLE SQUARE TOOL POST ....... 5"
3 JAW CHUCK ...................... 10"
MOTOR ............................ 10/75 HP / 480 / 3 / 60
SINGLE VOLTAGE
2 SPEED MOTOR
