Top Seller

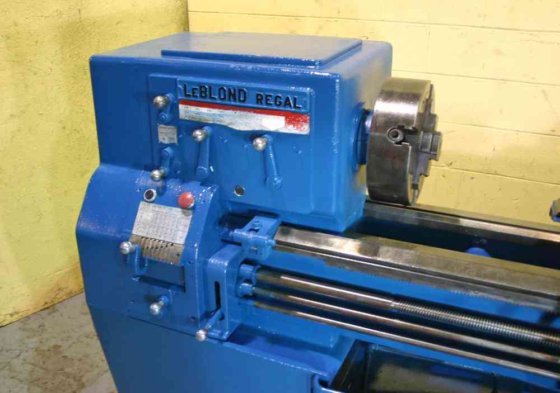

LeBlond 17 X 078 MDL
Location:
Holland, OH
Manufacturer:
Leblond lathes
Model:
17 X 078 MDL REGAL
Distance between Centers:
84"

Specifications

Condition:
used
Stock number:
4615
Chuck:
12" 4 JAW
Feeds:
(48) .0036 TO .116 IPR
Motor:
5 HORSEPOWER
Serial:
2D924
Model 2:
REGAL
Threads:
(48) 2 TO 64 TPI
Thread dial:
YES
Carriage stop:
YES
Spindle speeds:
(12) 38 TO 1500 RPM
Swing over ways:
18"
Taper attachment:
YES
Forward & reversing:
YES
Chip pan with coolant:
YES
Swing over cross slide:
11"
Harden replaceable ways:
YES
Diameter of spindle hole:
1-1/2"
Distance between centers:
84"
Subcategory:
Lathe- engine

Description

SERIAL ............................. 2D924
MODEL .............................. REGAL
SWING OVER WAYS .................... 18"
SWING OVER CROSS SLIDE ............. 11"
DISTANCE BETWEEN CENTERS ........... 84"
SPINDLE SPEEDS ..................... (12) 38 TO 1500 RPM
FEEDS .............................. (48) .0036 TO .116 IPR
THREADS ............................ (48) 2 TO 64 TPI
DIAMETER OF SPINDLE HOLE............ 1-1/2"
TAPER ATTACHMENT.................... YES
THREAD DIAL ........................ YES
CHIP PAN WITH COOLANT .............. YES
CARRIAGE STOP ...................... YES
CHUCK .............................. 12" 4 JAW
FORWARD & REVERSING ................ YES
HARDEN REPLACEABLE WAYS ............ YES
MOTOR .............................. 5 HORSEPOWER
