Top Seller

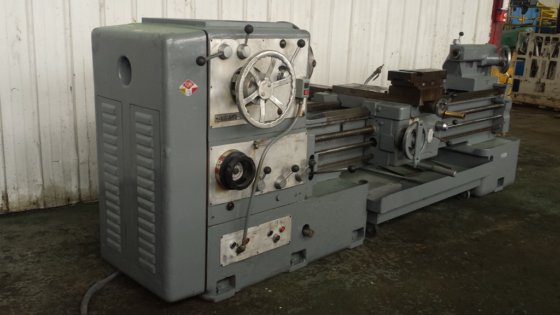

Summit 25 X 072 25"
Location:
Holland, OH
Manufacturer:
Summit
Model:
25 X 072
Distance between Centers:
72"

Specifications

Condition:
used
Year:
1971
Stock number:
62238
Chuck:
12" 3 JAW
Motor:
10 HORSEPOWER
Serial:
S150670
Model 2:
25
Year new:
1971
Hard ways:
YES
Feeds metric:
(56) .0235 TO 2.84 MM
Spindle hole:
3"
Swing in gap:
36"
Feeds english:
(56) .0009 TO 112 IPR
Spindle speeds:
(12) 18 TO 1200 RPM
Threads metric:
(35) .25 TO 23 MM
Swing over ways:
25"
Threads english:
(3/4" TO 92 TPI
Taper attachment:
YES
Chip pan with coolant:
YES
Swing over cross slide:
16"
Distance between centers:
72"
Subcategory:
Lathe- engine

Description

SERIAL .......................... S150670
MODEL ........................... 25
YEAR NEW ........................ 1971
SWING OVER WAYS ................. 25"
SWING IN GAP .................... 36"
DISTANCE BETWEEN CENTERS ........ 72"
SWING OVER CROSS SLIDE .......... 16"
SPINDLE SPEEDS .................. (12) 18 TO 1200 RPM
THREADS ENGLISH ................. (3/4" TO 92 TPI
THREADS METRIC .................. (35) .25 TO 23 MM
FEEDS ENGLISH ................... (56) .0009 TO 112 IPR
FEEDS METRIC .................... (56) .0235 TO 2.84 MM
SPINDLE HOLE .................... 3"
CHUCK ........................... 12" 3 JAW
TAPER ATTACHMENT ................ YES
HARD WAYS ....................... YES
CHIP PAN WITH COOLANT ........... YES
MOTOR ........................... 10 HORSEPOWER
