Top Seller

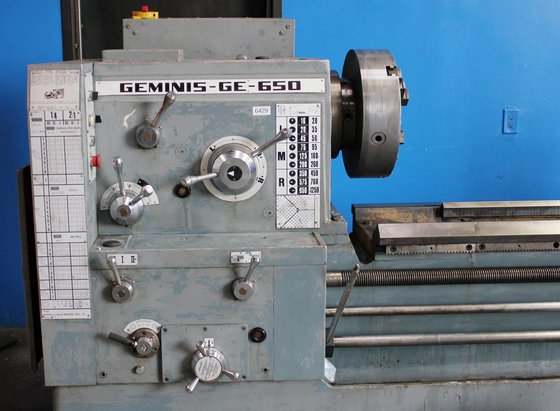

GEMINIS 27/36 X 240 MDL
Location:
Holland, OH
Manufacturer:
Geminis lathes
Model:
27/36 X 240 MDL GE-650
Spindle Nose:
D1-8

Specifications

Condition:
used
Stock number:
62776
Chuck:
3 JAW & 4 JAW
Feeds:
0.007" TO 0.0942"
Serial:
4977
Model 2:
GE-650
Threads:
1 TO 112 TPI
Tool post:
YES
Horsepower:
17.5
Steady rest:
YES
Spindle nose:
D1-8
Swing in gap:
36"
Spindle speeds:
(18) 16 TO 1,250 RPM
Swing over bed:
27"
Threads, metric:
0.5 TO 30 MM
Cross slide travel:
12"
Hole through spindle:
3-1/4"
Tailstock quill taper:
#5 MT
Swing over cross slide:
16"
Tailstock quill travel:
8"
Subcategory:
Lathe- engine

Description

SERIAL ...................... 4977
MODEL ....................... GE-650
SWING OVER BED .............. 27"
SWING IN GAP ................ 36"
SWING OVER CROSS SLIDE ...... 16"
DISTANCE BETWEEN CENTERS .... 240" (20')
SPINDLE SPEEDS .............. (18) 16 TO 1,250 RPM
SPINDLE NOSE ................ D1-8
HOLE THROUGH SPINDLE ........ 3-1/4"
THREADS ..................... 1 TO 112 TPI
THREADS, METRIC ............. 0.5 TO 30 MM
FEEDS ....................... 0.007" TO 0.0942"
CROSS SLIDE TRAVEL .......... 12"
TAILSTOCK QUILL TAPER ....... #5 MT
TAILSTOCK QUILL TRAVEL ...... 8"
CHUCK ....................... 3 JAW & 4 JAW
STEADY REST ................. YES
TOOL POST ................... YES
RAPID TRAVERSE ON CARRIAGE .. YES
HORSEPOWER .................. 17.5
