Top Seller

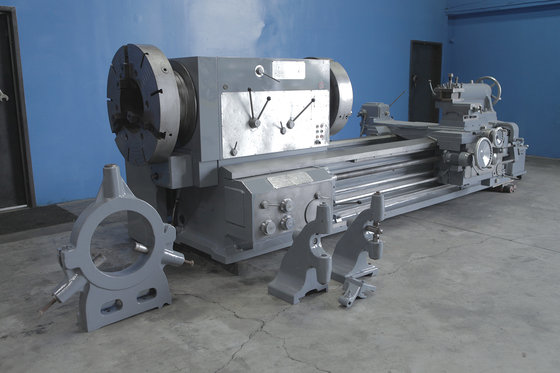

30 X 080 HOLLOW MDL
Location:
Holland, OH
Manufacturer:
N/A
Model:
30 X 080 HOLLOW MDL 825S360
Spindle Nose:
A1- 20

Specifications

Condition:
used
Stock number:
62622
Motor:
30 HP
Serial:
6845-5-10598
Model 2:
825S360
Chuck, rear:
31" 3 JAW
Steady rest:
YES
Chuck, front:
28" 4 JAW
Spindle nose:
A1- 20
Threads, inch:
2 TO 30 TPI
Spindle speeds:
40 TO 500 RPM
Swing over bed:
38"
Threads, metric:
1.5 TO 15 MM
Taper attachment:
YES
Hole through spindle:
14"
Threading attachment:
HYDRAULIC
Tailstock quill taper:
#6 MT
Swing over cross slide:
28"
Tailstock quill travel:
16"
Subcategory:
Lathe- engine

Description

SERIAL ...................... 6845-5-10598
MODEL ....................... 825S360
SWING OVER BED .............. 38"
SWING OVER CROSS SLIDE ...... 28"
DISTANCE BETWEEN CENTERS .... 80"
SPINDLE SPEEDS .............. 40 TO 500 RPM
SPINDLE NOSE ................ A1- 20
HOLE THROUGH SPINDLE ........ 14"
THREADS, INCH ............... 2 TO 30 TPI
THREADS, METRIC ............. 1.5 TO 15 MM
TAILSTOCK QUILL TAPER ....... #6 MT
TAILSTOCK QUILL TRAVEL ...... 16"
CHUCK, FRONT ................ 28" 4 JAW
CHUCK, REAR ................. 31" 3 JAW
TAPER ATTACHMENT ............ YES
STEADY REST ................. YES
THREADING ATTACHMENT ........ HYDRAULIC
MOTOR ....................... 30 HP
