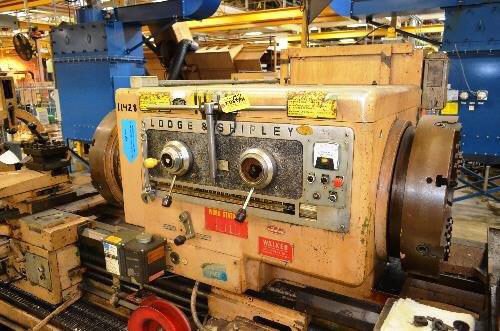

1970 Lodge & Shipley 32
Location:
Holland, OH
Model:
32 X 120/288 HOLLOW MDL 3220 SUPERTURN W
Distance between Centers:
252" RIGHT SIDE / 120" LEFT SIDE
Spindle Nose:
20" A1

Specifications

Condition:
used
Year:
1970
Stock number:
61320
Motor:
40 HP
Serial:
48128
Model 2:
3220 SUPERTURN W
Tool post:
4 WAY, 1 PER SIDE
Chuck bore:
12-5/8"
Thread dial:
YES
Spindle nose:
20" A1
Steady rests:
2
Spindle speeds:
5 TO 600 RPM
Thread changes:
(55) 1 TO 64 TPI
Hole thru spindle:
12.5"
Carriage, left side:
1 - STANDARD CARRIAGE
Forward & reversing:
YES
4 way rapid traverse:
YES
Carriages, right side:
2 -
Sony digital readouts:
YES
Swing over cross slide:
23"
Distance between centers:
252" RIGHT SIDE / 120" LEFT SIDE
Subcategory:
Lathe- engine

Description

SERIAL ........................ 48128
MODEL ......................... 3220 SUPERTURN W
YEAR .......................... 1970
HOLE THRU SPINDLE ............. 12.5"
SWING OVER BED WAYS, RATED .... 32"
SWING OVER BED WAYS, ACTUAL ... 32.5"
SWING OVER CROSS SLIDE ........ 23"
DISTANCE BETWEEN CENTERS ...... 252" RIGHT SIDE / 120" LEFT SIDE
CARRIAGES, RIGHT SIDE ......... 2 -
STANDARD CARRIAGE & BORING CARRIAGE
CARRIAGE, LEFT SIDE ........... 1 - STANDARD CARRIAGE
SPINDLE SPEEDS ................ 5 TO 600 RPM
CARRIAGE LONGITUDINAL FEEDS ... (55) .0025 TO .160 IPR
THREAD CHANGES ................ (55) 1 TO 64 TPI
CHUCKS ........................
(2) 24" CUSHMAN 4-JAW INDEPENDENT
CHUCK BORE .................... 12-5/8"
SPINDLE NOSE .................. 20" A1
4 WAY RAPID TRAVERSE .......... YES
STEADY RESTS .................. 2
TOOL POST ..................... 4 WAY, 1 PER SIDE
THREAD DIAL ................... YES
FORWARD & REVERSING ........... YES
SONY DIGITAL READOUTS ......... YES
MOTOR ......................... 40 HP
