Top Seller

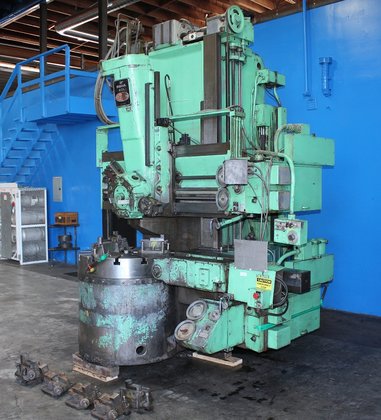

36 MDL DYNATROL 36" BULLARD
Location:
Holland, OH
Manufacturer:
Bullard lathes
Model:
36 MDL DYNATROL

Specifications

Condition:
used
Stock number:
61824
Chuck:
36" 3 JAW
Feeds:
001 TO .250 IPR
Serial:
31738
Model 2:
36" DYNATROL
Main motor:
40 HORSEPOWER
Table speeds:
13 TO 468 RPM
Maximum swing:
48"
Digital read outs:
YES
Maximum under rail:
30"
5 postion rail turret head:
POWER
Subcategory:
Lathe- vertical

Description

SERIAL .......................... 31738
MODEL ........................... 36" DYNATROL
CHUCK ........................... 36" 3 JAW
MAXIMUM SWING ................... 48"
MAXIMUM SWING WITH SIDE HEAD .... 39"
TABLE SPEEDS .................... 13 TO 468 RPM
MAXIMUM UNDER RAIL .............. 30"
FEEDS ........................... .001 TO .250 IPR
HORIZONTAL TRAVEL OF RAIL HEAD .. 43-3/4"
VERTICAL TRAVEL OF RAIL HEAD .... 20"
VERTICAL TRAVEL OF TURRET HEAD .. 26"
VERTICAL TRAVEL OF SIDE HEAD .... 28-3/4"
HORIZONTAL TRAVEL OF SIDE HEAD .. 23-3/4"
5 POSTION RAIL TURRET HEAD ...... POWER
DIGITAL READ OUTS ............... YES
MAIN MOTOR ...................... 40 HORSEPOWER
