Top Seller

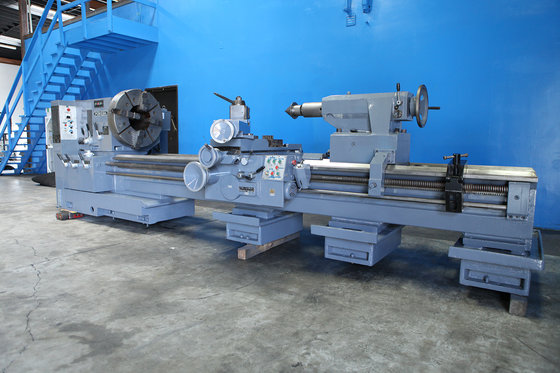

Poreba 36 X 120 HOLLOW
Location:
Holland, OH
Manufacturer:
Poreba lathes
Model:
36 X 120 HOLLOW MDL TPL-90/3M
Spindle Nose:
A1- 20

Specifications

Condition:
used
Stock number:
62621
Feeds:
(60) 0.0021" TO 0.248"
Serial:
0080-1197-021
Model 2:
TPL-90/3M
Horsepower:
30
Year built:
1980
Chuck, rear:
24" 4 JAW
Chuck, front:
28" 4 JAW
Spindle nose:
A1- 20
Rapid traverse:
4 WAY
Spindle speeds:
(36) 5 TO 250 RPM
Swing over bed:
36"
Threading, inch:
(54) 1/2 TO 16 TPI
Taper attachment:
YES
Threading, metric:
(72) 1 TO 60 MM
Cross slide travel:
18-1/2"
Hole through spindle:
12-1/2"
Tailstock quill taper:
#6 MT
Swing over cross slide:
25-1/2"
Tailstock quill travel:
11-3/4"
Subcategory:
Lathe- engine

Description

SERIAL ...................... 0080-1197-021
MODEL ....................... TPL-90/3M
YEAR BUILT .................. 1980
SWING OVER BED .............. 36"
SWING OVER CROSS SLIDE ...... 25-1/2"
DISTANCE BETWEEN CENTERS .... 120"
SPINDLE SPEEDS .............. (36) 5 TO 250 RPM
SPINDLE NOSE ................ A1- 20
HOLE THROUGH SPINDLE ........ 12-1/2"
THREADING, INCH ............. (54) 1/2 TO 16 TPI
THREADING, METRIC ........... (72) 1 TO 60 MM
FEEDS ....................... (60) 0.0021" TO 0.248"
CROSS SLIDE TRAVEL .......... 18-1/2"
TAILSTOCK QUILL TAPER ....... #6 MT
TAILSTOCK QUILL TRAVEL ...... 11-3/4"
CHUCK, FRONT ................ 28" 4 JAW
CHUCK, REAR ................. 24" 4 JAW
TAPER ATTACHMENT ............ YES
RAPID TRAVERSE .............. 4 WAY
HORSEPOWER .................. 30
