Top Seller

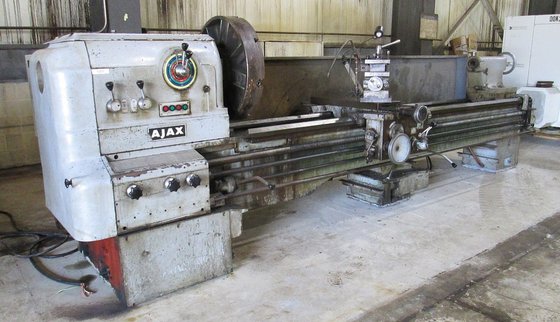

Ajax 32 X 096 32"
Location:
Holland, OH
Manufacturer:
Ajax lathes
Model:
32 X 096
Spindle Nose:
D1-11

Specifications

Condition:
used
Stock number:
62346
Chuck:
4 JAW
Feeds:
0.002" TO 0.277"
Motor:
25 HORSEPOWER
Serial:
C13B-874200-3000
Coolant:
YES
Tool post:
4 WAY
Spindle nose:
D1-11
Splash guard:
YES
Swing in gap:
42"
Spindle speeds:
8 TO 1,000 RPM
Swing over bed:
32"
Threads, metric:
1 TO 120MM
Threads, standard:
1/4 TO 30 TPI
Hole through spindle:
4"
Tailstock quill taper:
#6 MT
Tailstock quill travel:
12"
Subcategory:
Lathe- engine

Description

SERIAL ..................... C13B-874200-3000
SWING OVER BED ............. 32"
SWING IN GAP ............... 42"
DISTANCE BETWEEN CENTERS ... 96"
SPINDLE SPEEDS ............. 8 TO 1,000 RPM
SPINDLE NOSE ............... D1-11
HOLE THROUGH SPINDLE ....... 4"
THREADS, STANDARD .......... 1/4 TO 30 TPI
THREADS, METRIC ............ 1 TO 120MM
FEEDS ...................... 0.002" TO 0.277"
TAILSTOCK QUILL TRAVEL ..... 12"
TAILSTOCK QUILL TAPER ...... #6 MT
CHUCK ...................... 4 JAW
TOOL POST .................. 4 WAY
COOLANT .................... YES
SPLASH GUARD ............... YES
MOTOR ...................... 25 HORSEPOWER
