Top Seller
Location:
Holland, OH

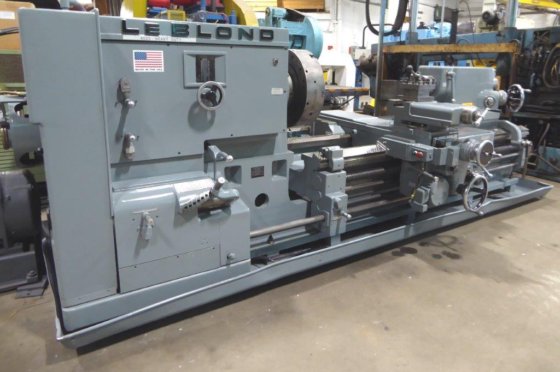

Manufacturer:
Leblond lathes
Model:
40/65 X 72/132 MDL NK 4025/65
Spindle Nose:
D1-11" CAMLOCK

Specifications

Condition:
used
Year:
1969
Stock number:
61119
Chuck:
24" 3 JAW
Feeds:
(48) .004 to .250 IPR
Serial:
#3NK-879
Model 2:
NK 4025/65
Threads:
(48) 3/4 to 46 TPI
Bed width:
31"
Face plate:
58" & 32"
Spindle hole:
3"
Spindle nose:
D1-11" CAMLOCK
Rapid traverse:
4 WAY POWER
Spindle speeds:
(36) 5.4 TO 600 RPM
Swing over bed:
40"
Center distance:
72" TO 132"
Taper attachment:
YES
Swing through gap:
65"
Cross slide travel:
32"
Swing over cross slide:
25"
Subcategory:
Lathe- engine

Description

SERIAL ...................... #3NK-879
MODEL ....................... NK 4025/65
YEAR ........................ 1969
SWING OVER BED .............. 40"
SWING OVER CROSS SLIDE ...... 25"
SWING THROUGH GAP ........... 65"
CENTER DISTANCE ............. 72" TO 132"
BED WIDTH ................... 31"
CROSS SLIDE TRAVEL .......... 32"
SPINDLE SPEEDS .............. (36) 5.4 TO 600 RPM
SPINDLE NOSE ................ D1-11" CAMLOCK
SPINDLE HOLE ................ 3"
TAILSTOCK SPINDLE DIAMETER .. 8"
TAILSTOCK SPINDLE TRAVEL .... 18"
FEEDS ....................... (48) .004 to .250 IPR
THREADS ..................... (48) 3/4 to 46 TPI
TAPER ATTACHMENT ............ YES
CHUCK ....................... 24" 3 JAW
FACE PLATE .................. 58" & 32"
RAPID TRAVERSE .............. 4 WAY POWER
MOTOR
........................ YES
