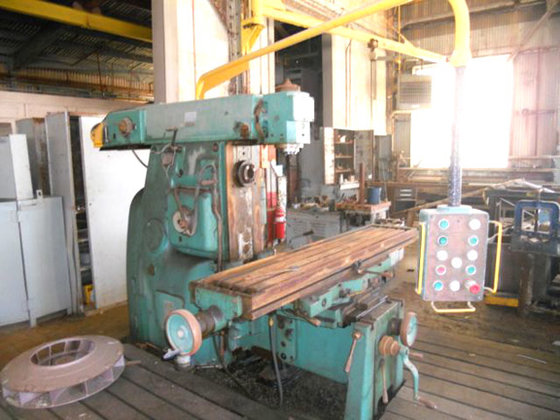

Polamco FW41M # 4 HORIZONTAL/VERTICAL
Location:
Holland, OH
Manufacturer:
Polamco
Model:
FW41M

Specifications

Condition:
used
Stock number:
57501
Motor:
15 HORSEPOWER
Serial:
92/23
Coolant:
YES
Cross feeds:
(32) 3/8 TO 31-5/8 IPM
Cross travel:
14-3/16"
Area of table:
78" X 15-3/4"
Rapid traverse:
99 IPM
Depth of throat:
18-1/2"
Pendant control:
YES
Taper in spindle:
#50 NS
Longitudinal feeds:
(32) 1/2 TO 42 IPM
Vertical ram feeds:
(16) 1/4 TO 80 IPM
Longitudinal travel:
41-3/4"
Vertical knee feeds:
(32) 1/4 TO 20 IPM
Vertical ram travel:
5-1/2"
Vertical knee travel:
13-13/16"
Spindle speeds horizontal:
(21) 20 TO 1300 RPM
Distance spindle nose to table:
0" MIN, 20" MAX
Subcategory:
Mill

Description

SERIAL ............................. 92/23
MODEL .............................. FW41M
AREA OF TABLE ...................... 78" X 15-3/4"
SPINDLE SPEEDS HORIZONTAL .......... (21) 20 TO 1300 RPM
SPINDLE SPEEDS VERTICAL SPINDLE .... (21) 37.5 TO 2360 RPM
LONGITUDINAL FEEDS ................. (32) 1/2 TO 42 IPM
CROSS FEEDS ........................ (32) 3/8 TO 31-5/8 IPM
VERTICAL KNEE FEEDS ................ (32) 1/4 TO 20 IPM
VERTICAL RAM FEEDS ................. (16) 1/4 TO 80 IPM
LONGITUDINAL TRAVEL ................ 41-3/4"
CROSS TRAVEL ....................... 14-3/16"
VERTICAL KNEE TRAVEL ............... 13-13/16"
VERTICAL RAM TRAVEL ................ 5-1/2"
DISTANCE SPINDLE NOSE TO TABLE ..... 0" MIN, 20" MAX
DEPTH OF THROAT .................... 18-1/2"
TAPER IN SPINDLE ................... #50 NS
RAPID TRAVERSE ..................... 99 IPM
PENDANT CONTROL .................... YES
COOLANT ............................ YES
MOTOR .............................. 15 HORSEPOWER
