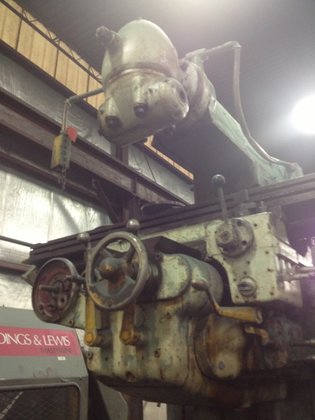

Kearney & Trecker 3CSM #3
Location:
Holland, OH
Manufacturer:
Kearney & Trecker
Model:
3CSM

Specifications

Condition:
used
Stock number:
4638
Spindle speeds:
(16) 25 TO 1250 RPM
Vertical feeds:
(32) 3/16 TO
Cross table travel:
12"
Longitudinal travel:
34"
Vertical knee travel:
17"
Vertical spindle speeds:
100 TO 1600 RPM
Working surface of table:
64" X 13-1/2"
Longitudinal and cross feeds:
(32) 3/8 TO 90 IPM
Vertical power rapid traverse:
75 IPM
Long and cross power rapid traverse:
150 IPM
Subcategory:
Mill

Description

SERIAL #6-7374
MODEL #3CSM
WORKING SURFACE OF TABLE ................... 64" X 13-1/2"
SPINDLE SPEEDS ............................. (16) 25 TO 1250 RPM
VERTICAL SPINDLE SPEEDS .................... 100 TO 1600 RPM
LONGITUDINAL AND CROSS FEEDS ............... (32) 3/8 TO 90 IPM
VERTICAL FEEDS ............................. (32) 3/16 TO
45 IPM
LONGITUDINAL TRAVEL ........................ 34"
CROSS TABLE TRAVEL ......................... 12"
VERTICAL KNEE TRAVEL ....................... 17"
LONG AND CROSS POWER RAPID TRAVERSE ........ 150 IPM
VERTICAL POWER RAPID TRAVERSE .............. 75 IPM
EQUIPPED WITH INDEPENDENT OVERARM VERTICAL HEAD
OVERARM SUPPORT
20 HORSEPOWER SPINDLE MOTOR
