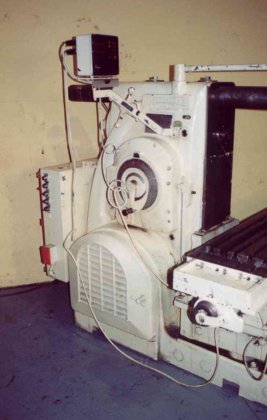

Kearney & Trecker 315TF-15 #
Location:
Holland, OH
Manufacturer:
Kearney & Trecker
Model:
315TF-15

Specifications

Condition:
used
Stock number:
16790
Serial:
10-9495
Coolant:
YES
Model 2:
315TF-16
Cross travel:
12"
Area of table:
68" X 15-3/4"
Rapid traverse:
150 IPM
Spindle speeds:
(24) 15 TO 1500 RPM
Vertical feeds:
(32) 1/8 TO 30 IPM
Taper in spindle:
50NS
Longitudinal travel:
34"
Vertical knee travel:
18"
Spindle motor, horsepower:
15
Longitudinal & cross feeds:
(32) 3/8 TO 90 IPM
Subcategory:
Mill

Description

SERIAL .............................. 10-9495
MODEL ............................... 315TF-16
AREA OF TABLE ....................... 68" X 15-3/4"
SPINDLE SPEEDS ...................... (24) 15 TO 1500 RPM
LONGITUDINAL & CROSS FEEDS .......... (32) 3/8 TO 90 IPM
VERTICAL FEEDS ...................... (32) 1/8 TO 30 IPM
LONGITUDINAL TRAVEL ................. 34"
CROSS TRAVEL ........................ 12"
VERTICAL KNEE TRAVEL ................ 18"
TAPER IN SPINDLE .................... 50NS
RAPID TRAVERSE ...................... 150 IPM
COOLANT ............................. YES
SPINDLE MOTOR, HORSEPOWER ........... 15
