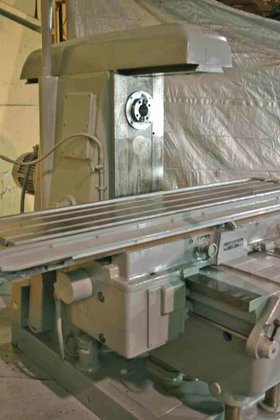

TOS FA5B-H in Holland, OH, USA

Location:
Holland, OH, USA
Price:
No price
Manufacturer:
TOS Varnsdorf
Model:
FA5B-H

Specifications

Condition:
used
Stock number:
19771
New:
1978
Coolant:
YES
Area of table:
78-3/4" X 17-3/4"
Rapid traverse:
126 IPM
Spindle speeds:
(20) 18 TO 1400 RPM
Vertical feeds:
(15 1/8 TO 14-3/4 IPM
Pendant control:
YES
Taper in spindle:
50NS
Cross table travel:
17"
Vertical knee travel:
17"
Longitudinal table travel:
55"
Right angle vertical head:
YES
Spindle motor, horsepower:
20
Longitudinal and cross feeds:
(15) 15/32 TO 59 IPM
Distance center of spindle to table:
4-1/2" MIN, 22-1/2" MAX
Category:
Machine Tools equipment in United States
Subcategory:
Mill
Subcategory 2:
Horizontal all

Description

SERIAL ................................ 23441
MODEL ................................. FA5B-H
NEW ................................... 1978
AREA OF TABLE ......................... 78-3/4" X 17-3/4"
SPINDLE SPEEDS ........................ (20) 18 TO 1400 RPM
LONGITUDINAL AND CROSS FEEDS .......... (15) 15/32 TO 59 IPM
VERTICAL FEEDS ........................ (15 1/8 TO 14-3/4 IPM
LONGITUDINAL TABLE TRAVEL ............. 55"
CROSS TABLE TRAVEL .................... 17"
VERTICAL KNEE TRAVEL .................. 17"
RAPID TRAVERSE ........................ 126 IPM
TAPER IN SPINDLE ...................... 50NS
DISTANCE CENTER OF SPINDLE TO TABLE ... 4-1/2" MIN, 22-1/2" MAX
RIGHT ANGLE VERTICAL HEAD ............. YES
PENDANT CONTROL ....................... YES
COOLANT ............................... YES
SPINDLE MOTOR, HORSEPOWER ............. 20
