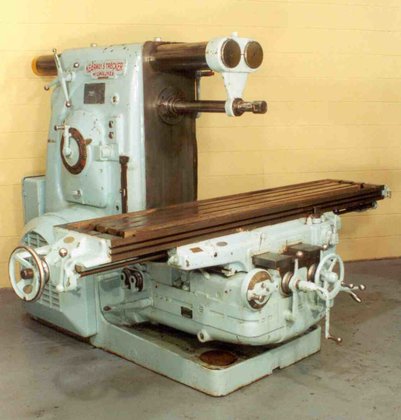

Kearney & Trecker 4CK MODEL
Location:
Holland, OH
Manufacturer:
Kearney & Trecker
Model:
4CK

Specifications

Condition:
used
Stock number:
7411
Serial:
4-7292
Cross travel:
14"
Area of table:
90" X 18"
Rapid traverse:
150 IPM
Spindle speeds:
(24) 13 TO 1300 RPM
Vertical feeds:
(32) 3/16 TO 45 IPM
Taper in spindle:
#50 NS
Longitudinal travel:
42"
Vertical knee travel:
21"
Distance spindle to table:
0" MIN. / 21" MAX.
Longitudinal & cross feeds:
(32) 3/8 TO 90 IPM
Subcategory:
Mill

Description

SERIAL .................................... 4-7292
AREA OF TABLE ............................. 90" X 18"
SPINDLE SPEEDS ............................ (24) 13 TO 1300 RPM
LONGITUDINAL & CROSS FEEDS ................ (32) 3/8 TO 90 IPM
VERTICAL FEEDS ............................ (32) 3/16 TO 45 IPM
LONGITUDINAL TRAVEL ....................... 42"
CROSS TRAVEL .............................. 14"
VERTICAL KNEE TRAVEL ...................... 21"
DISTANCE SPINDLE TO TABLE ................. 0" MIN. / 21" MAX.
RAPID TRAVERSE ............................ 150 IPM
TAPER IN SPINDLE .......................... #50 NS
OVERARM SUPPORT
DUAL CONTROLS
COOLANT
25 HORSEPOWER SPINDLE MOTOR
5 HORSEPOWER FEED MOTOR
