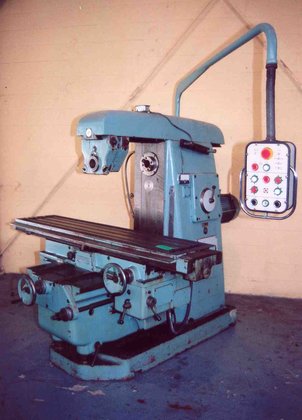

TOS 4 MODEL # HORIZONTAL
Location:
Holland, OH
Manufacturer:
TOS Varnsdorf
Model:
4

Specifications

Condition:
used
Stock number:
5200
Rapid traverse:
126 IPM (1.5 VERTICAL)
Spindle speeds:
(20) 18 TO 1400 RPM
Vertical feeds:
1 TO 12.4 IPM
Vertical travel:
18"
Taper in spindle:
#50 NS
Cross table travel:
18"
Working surface of table:
78-1/2" X 17-3/4"
Distance spindle to table:
O" MINIMUM, 22" MAXIMUM
Longitudinal table travel:
54"
Longitudinal and cross feeds:
(15) 15/32 TO 58 IPM
Subcategory:
Mill

Description

SERIAL #26459
MODEL #FA5B-H
NEW IN 1981
WORKING SURFACE OF TABLE ........... 78-1/2" X 17-3/4"
SPINDLE SPEEDS ..................... (20) 18 TO 1400 RPM
LONGITUDINAL AND CROSS FEEDS ....... (15) 15/32 TO 58 IPM
VERTICAL FEEDS ..................... .1 TO 12.4 IPM
LONGITUDINAL TABLE TRAVEL .......... 54"
CROSS TABLE TRAVEL ................. 18"
VERTICAL TRAVEL .................... 18"
RAPID TRAVERSE ..................... 126 IPM (1.5 VERTICAL)
DISTANCE SPINDLE TO TABLE .......... O" MINIMUM, 22" MAXIMUM
TAPER IN SPINDLE ................... #50 NS
COOLANT
20 HORSEPOWER MAIN MOTOR
