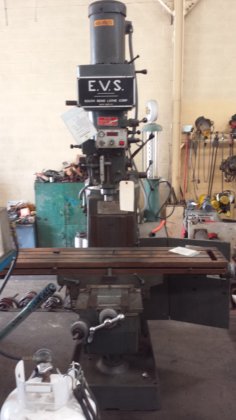

Southbend EVS CHIPMASTER II 5
Location:
Holland, OH
Manufacturer:
RAM
Model:
EVS CHIPMASTER II

Specifications

Condition:
used
Stock number:
62333
Motor:
5 HORSEPOWER
Serial:
SE39873
Ram travel:
22-3/16"
Cross travel:
16"
Quill travel:
5"
Area of table:
50" X 10"
Automatic lube:
YES
Harden & ground:
WAYS
Taper in spindle:
R8
Vertical knee travel:
16"
Head tilts, front/back:
45 DEGREE EITHER WAY
Spindle feeds (metric):
0016,.004 & .008 MMPR
Spindle feeds (english):
0015, .003, .006 IPR
Head swivels, left/right:
90 DEGREE EITHER WAY
Longitudinal table travel:
33"
Distance spindle to column:
5" TO 27"
Spindle speeds, infinte variable:
0 TO 5000 RPM
Subcategory:
Mill
Subcategory 2:
Mill- universal

Description

SERIAL ............................... SE39873
MODEL ................................ EVS CHIPMASTER II
AREA OF TABLE ........................ 50" X 10"
SPINDLE SPEEDS, INFINTE VARIABLE ..... 0 TO 5000 RPM
SPINDLE FEEDS (ENGLISH) .............. .0015, .003, .006 IPR
SPINDLE FEEDS (METRIC) ............... .0016,.004 & .008 MMPR
LONGITUDINAL TABLE TRAVEL ............ 33"
CROSS TRAVEL ......................... 16"
VERTICAL KNEE TRAVEL ................. 16"
QUILL TRAVEL ......................... 5"
RAM TRAVEL ........................... 22-3/16"
DISTANCE SPINDLE TO COLUMN ........... 5" TO 27"
TAPER IN SPINDLE ..................... R8
HEAD TILTS, FRONT/BACK ............... 45 DEGREE EITHER WAY
HEAD SWIVELS, LEFT/RIGHT ............. 90 DEGREE EITHER WAY
HARDEN & GROUND ...................... WAYS
AUTOMATIC LUBE ....................... YES
MOTOR ................................ 5 HORSEPOWER
