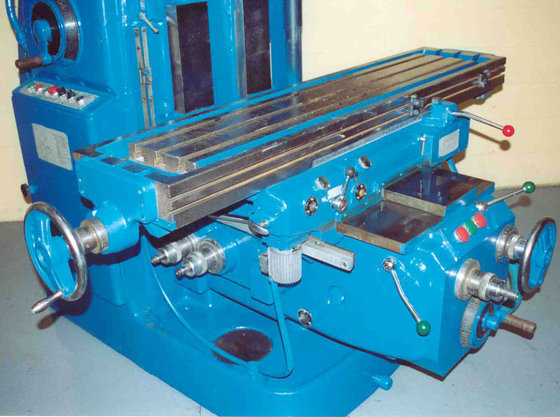

1970 3M HITACHI MODEL #
Location:
Holland, OH
Manufacturer:
Hitachi
Model:
3M

Specifications

Condition:
used
Year:
1970
Stock number:
15329
Motor:
15 HORSEPOWER SPINDLE MOTOR
Serial:
8706348
Coolant:
YES
Power drawbar:
YES
Spindle taper:
#50 NS
Rapid traverse:
YES
Spindle speeds:
(16) 25 TO 1500 RPM
Cross table travel:
14"
Vertical table feeds:
(16) 1/4 TO 31-1/2 IPM
Vertical table travel:
19-11/16"
Table area (t-slotted):
63" X 14"
Longitudinal table travel:
33-7/8"
Subcategory:
Mill

Description

SERIAL ............................ 8706348
MODEL ............................. 3M
NEW IN ............................ 1970
TABLE AREA (T-SLOTTED) ............ 63" X 14"
LONGITUDINAL TABLE TRAVEL ......... 33-7/8"
CROSS TABLE TRAVEL ................ 14"
VERTICAL TABLE TRAVEL ............. 19-11/16"
SPINDLE TAPER ..................... #50 NS
SPINDLE SPEEDS .................... (16) 25 TO 1500 RPM
LONGITUDINAL & CROSS TABLE FEEDS .. (16) 21/32 TO 85 IPM
VERTICAL TABLE FEEDS .............. (16) 1/4 TO 31-1/2 IPM
POWER DRAWBAR ..................... YES
RAPID TRAVERSE .................... YES
COOLANT ........................... YES
MOTOR ............................. 15 HORSEPOWER SPINDLE MOTOR
