Top Seller

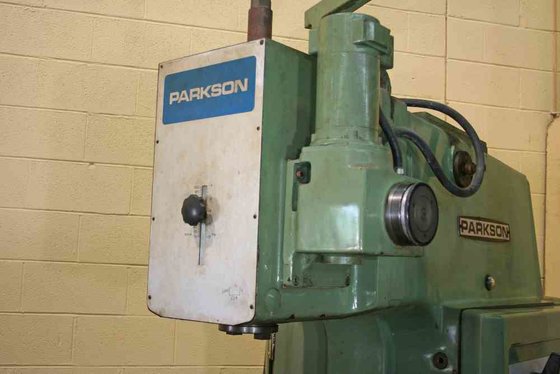

PARKSONS 3 PARKSON MODEL 1500
Location:
Holland, OH
Manufacturer:
PARKSONS
Model:
3

Specifications

Condition:
used
Stock number:
51715
Serial:
8837
Model 2:
M1500-V2
Year new:
1989
Cross travel:
14"
Quail travel:
4"
Area of table:
68-1/4 X 16"
Dual controls:
YES
Rapid traverse:
150 IPM
Spindle speeds:
(18) 27 TO 1600 RPM
Vertical travel:
17-3/4"
Taper in spindle:
#50NS
Longitudinal travel:
35-1/2"
Vertical knee feeds:
1-3/4" TO 64 IPM
Feed motor, horsepower:
6
Spindle motor, horsepower:
15
Longitudinal & cross feeds:
1-3/4" TO 64 IPM
Subcategory:
Mill

Description

SERIAL .................................. 8837
MODEL ................................... M1500-V2
YEAR NEW ................................ 1989
AREA OF TABLE ........................... 68-1/4 X 16"
SPINDLE SPEEDS .......................... (18) 27 TO 1600 RPM
LONGITUDINAL & CROSS FEEDS .............. 1-3/4" TO 64 IPM
VERTICAL KNEE FEEDS ..................... 1-3/4" TO 64 IPM
LONGITUDINAL TRAVEL ..................... 35-1/2"
CROSS TRAVEL ............................ 14"
VERTICAL TRAVEL ......................... 17-3/4"
TAPER IN SPINDLE ........................ #50NS
QUAIL TRAVEL ............................ 4"
RAPID TRAVERSE .......................... 150 IPM
DUAL CONTROLS ........................... YES
SPINDLE MOTOR, HORSEPOWER ............... 15
FEED MOTOR, HORSEPOWER .................. 6
