Top Seller

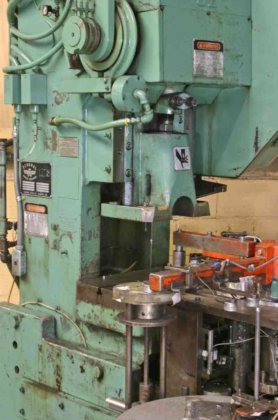

1993 Federal 0032 32 TON
Location:
Holland, OH
Manufacturer:
Federal
Model:
0032
Capacity:
32 TON

Specifications

Condition:
used
Year:
1993
Stock number:
51136
Serial:
#32-591
Bolster:
24" X 15" X 2-1/2"
Model 2:
32
Capacity:
32 TON
Area of bed:
24" X 15"
Area of ram:
15" X 10"
Flywheel type:
YES
Blank diameter:
8" MINIMUM - 18" MAXIMUM
Depth of throat:
8"
Stroke of slide:
3"
Slide adjustment:
2"
Shut height, sdau:
11-1/2"
Air counter balance:
YES
Press motor, horsepower:
5
Air clutch and air brake:
YES
Subcategory:
Press-obi flywheel

Description

SERIAL ......................... #32-591
MODEL .......................... 32
YEAR ........................... 1993
CAPACITY ....................... 32 TON
STROKE OF SLIDE ................ 3"
SLIDE ADJUSTMENT ............... 2"
SHUT HEIGHT, SDAU .............. 11-1/2"
AREA OF BED .................... 24" X 15"
AREA OF RAM .................... 15" X 10"
DEPTH OF THROAT ................ 8"
DIAMETER OF RECEIVING TABLE .... 24"
BLANK DIAMETER ................. 8" MINIMUM - 18" MAXIMUM
PICK & PLACE LOADED
PICK & PLACE UNLOADED
STROKES PER MINUTE, VARIABLE ... 100 - 200
BOLSTER ........................ 24" X 15" X 2-1/2"
AIR CLUTCH AND AIR BRAKE ....... YES
FLYWHEEL TYPE .................. YES
AIR COUNTER BALANCE ............ YES
PRESS MOTOR, HORSEPOWER ........ 5
