Top Seller

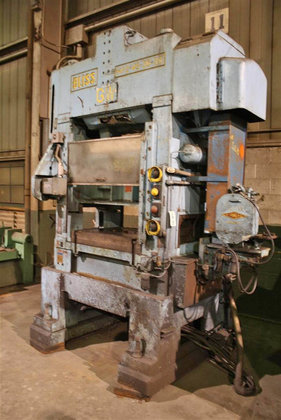

Bliss 0045 45 TON #HP2-45-36-30
Location:
Holland, OH
Manufacturer:
Bliss presses
Model:
0045
Capacity:
45 TONS
Stroke:
1"

Specifications

Condition:
used
Stock number:
51670
Motor:
15 HORSEPOWER
Stroke:
1"
Windows:
17" WIDE
Bed area:
30" FB x 36" LR
Capacity:
45 TONS
Air clutch:
YES
Slide area:
18" FB x 36" LR
Shut height:
18"
Ross air valves:
YES
Slide adjustment:
3" BY PNEUMATIC MOTOR
Bolster thickness:
5"
Strokes per minute:
VARIABLE SPEED UP TO 1000
Trabon lube system:
YES
Cooled head exchanger:
YES
Link electric controls:
YES
Louis allis adjusto speed control:
YES

Description

CAPACITY ............................. 45 TONS
STROKE ............................... 1"
STROKES PER MINUTE ................... VARIABLE SPEED UP TO 1000
SLIDE AREA ........................... 18" FB x 36" LR
SLIDE ADJUSTMENT ..................... 3" BY PNEUMATIC MOTOR
BED AREA ............................. 30" FB x 36" LR
SHUT HEIGHT .......................... 18"
BOLSTER THICKNESS .................... 5"
WINDOWS .............................. 17" WIDE
VAMCO #TS6 AUTOMATIC FEED - S/N A6F622T109R ..... YES
TRABON LUBE SYSTEM .............................. YES
ROSS AIR VALVES ................................. YES
LINK BLK. MAX. LIGHT CURTAINS, FRONT & BACK ..... YES
LINK ELECTRIC CONTROLS .......................... YES
AIR CLUTCH ...................................... YES
LOUIS ALLIS ADJUSTO SPEED CONTROL ............... YES
RECIRCULATING OIL LUBE SYSTEM W/FILTER & WATER .. YES
COOLED HEAD EXCHANGER ........................... YES
MOTOR ................................. 15 HORSEPOWER
