Top Seller

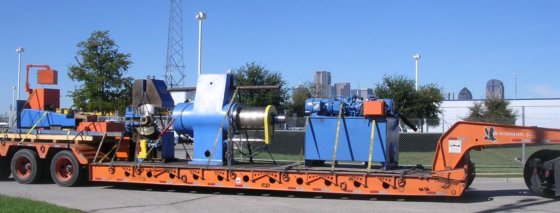

0600 600 TON CONTEMPORARY COMBO
Location:
Holland, OH
Manufacturer:
N/A
Model:
0600
Capacity:
600 TONS

Specifications

Condition:
used
Stock number:
57418
Capacity:
600 TONS
Main ram diameter:
22"
Electrical power req:
45K W
Pressing speed range:
0 - 14 IPM
Min / max axle length:
1 65 / 110"
Rapid approach/retract:
85 / 150 IPM
Main ram working travel:
36" EACH
Min / max wheel diameter:
1 24 / 50"
Tension bar cross section:
4 X 12"
Distance between tension bars:
54"
Subcategory:
Wheel press

Description

CAPACITY ..................................... 600 TONS
PRESSING SPEED RANGE ......................... 0 - 14 IPM
RAPID APPROACH/RETRACT ....................... 85 / 150 IPM
MAIN RAM DIAMETER ............................ 22"
MAIN RAM WORKING TRAVEL ...................... 36" EACH
TENSION BAR CROSS SECTION .................... 4 X 12"
DISTANCE BETWEEN TENSION BARS ................ 54"
HORIZONTAL OFFSET OF TENSION BARS (INCLINE) .. 12"
MIN / MAX AXLE LENGTH ........................ 1 65 / 110"
MIN / MAX WHEEL DIAMETER ..................... 1 24 / 50"
ELECTRICAL POWER REQ ......................... 45K W
