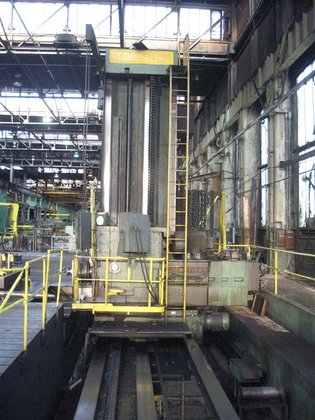

Giddings & Lewis 70-N8-UF 8"
Location:
Holland, OH
Model:
70-N8-UF
Control:
YES

Specifications

Condition:
used
Stock number:
57306
Serial:
270-21-71
Tapping:
YES
Milling feeds:
186 TO 94.4 IPM
Overall height:
26'
Power draw bar:
YES
Spindle speeds:
2.65 TO 560 RPM
Ball screw feed:
YES
Pendant control:
YES
Hard ways column:
YES
Taper in spindle:
#60 NS
Travel of spindle:
60"
Main spindle motor:
100 HORSEPOWER
Diameter of spindle:
8"
Forward and reversing:
YES
G&l numeriread control:
YES
Vertical travel of head:
12'
Spindle & underarm feeds:
7 TO 145 IPM / .0013 TO .250 IPR
Spindle underarm support:
YES
Power clamp to column, head:
YES
Hard ways on horizontal ways:
YES
Longitudinal travel of column:
30'
Floor to top of column carriage:
43"
3 ways on vertical and horizontal:
YES
Power clamp to spindle & underarm:
YES
Spindle depth dial and pilot wheel:
YES

Description

SERIAL .................................. 270-21-71
MODEL ................................... 70-N8-UF
DIAMETER OF SPINDLE ..................... 8"
TRAVEL OF SPINDLE ....................... 60"
BALL SCREW FEED ......................... YES
LONGITUDINAL TRAVEL OF COLUMN .......... 30'
VERTICAL TRAVEL OF HEAD ................. 12'
SPINDLE SPEEDS .......................... 2.65 TO 560 RPM
MILLING FEEDS .......................... .186 TO 94.4 IPM
TAPER IN SPINDLE ....................... #60 NS
SPINDLE & UNDERARM FEEDS ............... .7 TO 145 IPM / .0013 TO .250 IPR
RAPID TRAVERSE TO HEAD, COLUMN, SPINDLE . 140 IPM
POWER DRAW BAR .......................... YES
TAPPING ................................. YES
3 WAYS ON VERTICAL AND HORIZONTAL ....... YES
G&L NUMERIREAD CONTROL .................. YES
SPINDLE UNDERARM SUPPORT ................ YES
POWER CLAMP TO COLUMN, HEAD ............. YES
POWER CLAMP TO SPINDLE & UNDERARM ....... YES
SPINDLE DEPTH DIAL AND PILOT WHEEL ...... YES
HARD WAYS COLUMN ........................ YES
HARD WAYS ON HORIZONTAL WAYS ............ YES
FORWARD AND REVERSING ................... YES
PENDANT CONTROL ......................... YES
MAIN SPINDLE MOTOR ...................... 100 HORSEPOWER
OVERALL HEIGHT .......................... 26'
FLOOR TO TOP OF COLUMN CARRIAGE ......... 43"
(PREVIOUSLY IN PIT)
