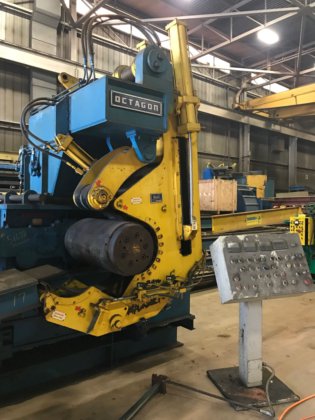

OCTAGON 10000 10, 000 LBS
Location:
Holland, OH
Manufacturer:
OCTAGON
Model:
10000

Specifications

Condition:
used
Stock number:
51678
Recoiler:
..
Max. coil o.d:
54" (EST) ..........
Max. coil width:
27"........
Recoiler shaft diameter:
9" ...........
Coil i.d. (recoiler drum o.d.):
16" .....
Subcategory:
Uncoiler

Description

INSERTION SECTION CONSISTS OF .......
(3) PAIRS OF ADJUSTABLE WIDTH EDGE GUIDE ROLLS ........
(2) PAIRS OF DRIVEN RUBBER COATED ROLLS, 8" DIA. x 18" WIDE, ....
EACH PAIR HAS HYDRAULIC HOLD DOWN CYLINDERS WHICH CAN BE INDIVIDUALLY ..
ADJUSTED FOR PRESSURE ........
NORTH AMERICAN DISCRIMINATING DETECTOR CAMERA, MODEL #M3109, S/N HC6413 ..
(1) LARGE DIA. RUBBER COATED HOLD DOWN ROLL ..
PEELER BLADE TYPE COIL END GUIDE, HYDRAULIC LIFT & EXTEND ......
TABLE TO GUIDE LEAD END OF COIL ONTO RECOILER/BELT WRAPPER ....
EST. MIN/MAX. COIL SPEED:
103/135 FPM DRIVEN BY 20 HP DC ........
RECOILER:..
MAX. COIL WIDTH: 27"........
MAX. COIL O.D.: 54" (EST) ..........
COIL I.D. (RECOILER DRUM O.D.): 16" .....
RECOILER SHAFT DIAMETER: 9" ...........
EST MIN. STRIP SPEED ON BARE DRUM & MIN. RECOIL SPEED: 35 FPM ....
EST MAX. STRIP SPEED AT FULL COIL DIA.& MAX. RECOIL SPEED: 360 FPM ..
MOTOR - 10 HP DC ..
HYDRAULICALLY OPERATED 8" WIDE BELT WRAPPER ..
RECOILER MOTOR - 10 HP DC 500 VOLT, 650/1950 RPM W/RELIANCE BLOWER 1/2 HP ..
W/DC TECHOMETER ..
HYDRAULIC UNIT - 20 HP 230/460/3/60-1750 RPM ..
