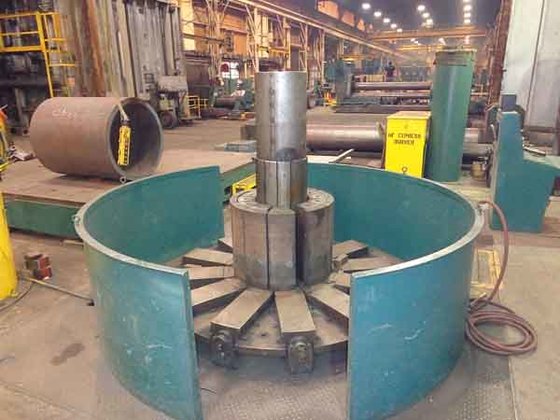

1580 TON GROTNES 12 SEGMENT VERTICAL EXPANDER in Holland, OH, USA

Location:
Holland, OH, USA
Price:
No price
Manufacturer:
N/A
Model:
40-H-1580

Specifications

Condition:
used
Year:
1966
Stock number:
62713
Total stroke:
21"
Table diameter:
76"
Cone angle 3 deg:
30'
Max part diameter:
74"
Max pressure/return:
3,000 PSI
Max pressure/pulling:
3,000 PSI
Tangential stress in part:
36"
New head (jaws/cone/table):
1983
Max stock thickness of part:
.875
Hydraulic cylinder return area:
200 SQ IN
Nominal width across jaw flats:
39.000"
Hydraulic cylinder pulling area:
1,050 SQ IN
Adjustment range from nominal width:
+/-.500"
Max cross section of part (thk x l):
115,000 PSI
Stroke used for head components as supplied:
16-1/2"
Width across jaw flats in collapsed position:
37.500"
Category:
Machine Tools equipment in United States

Description

SERIAL ........................................ A9310
MODEL ......................................... 40-H-1580
YEAR .......................................... 1966
NEW HEAD (JAWS/CONE/TABLE) .................... 1983
HYDRAULIC CYLINDER PULLING AREA ............... 1,050 SQ IN
HYDRAULIC CYLINDER RETURN AREA ................ 200 SQ IN
MAX PRESSURE/PULLING .......................... 3,000 PSI
MAX PRESSURE/RETURN ........................... 3,000 PSI
TOTAL STROKE .................................. 21"
STROKE USED FOR HEAD COMPONENTS AS SUPPLIED ... 16-1/2"
NOMINAL WIDTH ACROSS JAW FLATS ................ 39.000"
ADJUSTMENT RANGE FROM NOMINAL WIDTH ........... +/-.500"
WIDTH ACROSS JAW FLATS IN COLLAPSED POSITION .. 37.500"
CONE ANGLE 3 DEG .............................. 30'
TABLE DIAMETER ................................ 76"
MAX PART DIAMETER ............................. 74"
MAX CROSS SECTION OF PART (THK X L) ........... 115,000 PSI
TANGENTIAL STRESS IN PART ..................... 36"
