Feedlease DFL4 60-24 60" x
Location:
Holland, OH
Manufacturer:
Feedlease
Model:
DFL4 60-24
Capacity:
60" X 24"
Weight:
2,480 LBS X 80" X 23" X 80"H

Specifications

Condition:
used
Stock number:
61844
Oad:
11'L X 89"W X 96"H
Type:
DOUBLE GRIPPER AIR FEED
Serial:
5736
Stroke:
24"
Weight:
2,480 LBS X 80" X 23" X 80"H
Max spm:
35 @ 24"
Min spm:
70 @ 6"
Capacity:
60" X 24"
Hold down:
7" DIAMETER
Max width:
60"
Min width:
0"
Electrical:
480/3/60HZ
Feed weight:
7,650 LBS / 18" ADJ LEGS
Control panel:
BUTTONS, OFF, FEED
Roll diameter:
3.500"
Number of rolls:
7
Stock thickness:
150 MAX
Manual adjustment:
YES
Subcategory:
Feeders

Description

SERIAL ......................... 5736
MODEL .......................... DFL4 60-24
CAPACITY ....................... 60" X 24"
TYPE ........................... DOUBLE GRIPPER AIR FEED
STROKE ......................... 24"
MAX WIDTH ...................... 60"
MIN WIDTH ...................... 0"
STOCK THICKNESS ................ .150 MAX
MAX SPM ........................ 35 @ 24"
MIN SPM ........................ 70 @ 6"
PASSLINE SET NOW @ 73-1/2" (HAS SCREW LEGS TO ADJ FEED HEIGHT FOR PASSLINE
18" ADJ)
EQUIPPED WITH STRAIGHTENER:
NUMBER OF ROLLS ............... 7
ROLL DIAMETER .................. 3.500"
MANUAL ADJUSTMENT .............. YES
FEED WEIGHT .................... 7,650 LBS / 18" ADJ LEGS
OAD ............................ 11'L X 89"W X 96"H
60" DRAGBOARD TENSION STAND WITH:
(3) AIR CYLINDERS
HOLD DOWN ....................... 7" DIAMETER
WEIGHT .......................... 2,480 LBS X 80" X 23" X 80"H
ELECTRICAL ...................... 480/3/60HZ

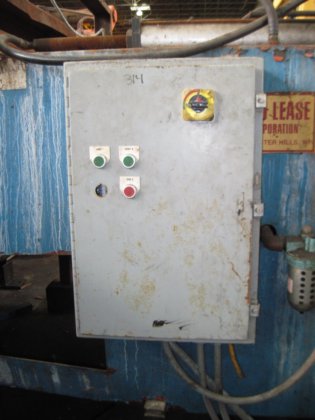

CONTROL PANEL ................... BUTTONS, OFF, FEED
SIMPLE, PILOT PIN, RH, BOTH
