Top Seller

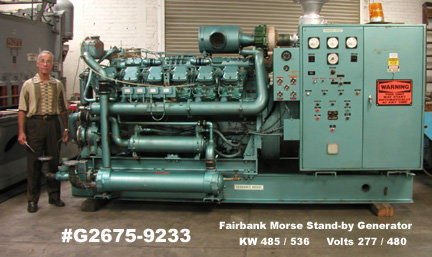

500T-12V FAIRBANK MORSE MODEL STAND
Location:
Holland, OH
Manufacturer:
N/A
Model:
500T-12V
Hours:
149
Power:
732 CONTINUOUS

Specifications

Condition:
used
Stock number:
58852
Kw:
485/536
Kva:
606/669
Amps:
730/804
Bore:
6.25
Phase:
3 PH
Cycles:
56 THRU 65
Serial:
88286FM
Model 2:
5DA6T-12V
Model 3:
LS60
Serial 2:
1845
Horsepower:
732 CONTINUOUS
Control switch:
OFF/HAND CRANK, AUTOMATIC MANUAL
Voltage output:
277/480 VAC
Engine (diesel):
V-12
Total hours used:
149
Hand crank switch:
RUN-STOP
Twin turbocharged:
1800 RPM
Stroke of cylinder:
6.5
Subcategory:
Generators

Description

SERIAL ....................... 88286FM
MODEL ........................ 500T-12V
TOTAL HOURS USED ............. 149
GENERATOR:
KW ........................... 485/536
KVA .......................... 606/669
VOLTAGE OUTPUT ............... 277/480 VAC
AMPS ......................... 730/804
PHASE ........................ 3 PH
CYCLES ....................... 56 THRU 65
ENGINE (DIESEL) .............. V-12
MODEL ........................ 5DA6T-12V
TWIN TURBOCHARGED ............ 1800 RPM
HORSEPOWER ................... 732 CONTINUOUS
BORE ......................... 6.25
STROKE OF CYLINDER ........... 6.5
CONTROLS:
AC AMMETER SWITCH-4 POSITIONS
AC AMPERES METER
CYCLE METER
AC VOLT METER
AC KILOWATTS METER
VOLTMETER SWITCH/4 POSITIONS
CONTROL SWITCH: OFF/HAND CRANK, AUTOMATIC MANUAL
ALARM SILENCE BUTTON
EXCITER RHEOSTAT
SPEED ADJ
EPG FUSE
VOLT REGULATOR FUSE
DIESEL COOLING PUMP LIGHT
OVER CRANK LIGHT
WATER TEMP LIGHT
OIL PRESSURE LIGHT
OVER SPEED LIGHT
ANTIC OIL PRESSURE LIGHT
ANTIC WATER TEMP
LIGHT FUEL LEVEL LIGHT
RESET BUTTON
EMERGENCY STOP BUTTON
HAND CRANK BUTTON
HAND CRANK SWITCH: RUN-STOP
OIL TEMP GAGE
RPM W/HOUR USAGE METER
AMPERES GAGE
OIL PRESSURE GAGE
FUEL PRESSURE GAGE
COOLING WATER IN & OUT FLOW GAUGES
EQUIPPED:
NON CONTACT COOLING SYSTEM
HEAT EXCHANGERS
1- ABOVE GROUND CON VAULT ENVIR-SAFE 500 GALLON DIESEL FUEL STORAGE TANK WITH WARRICK CONTROL LEAK DETECTOR TUBE
PNEUMERCATOR
SERIAL ...................... 1845
MODEL ....................... LS60
