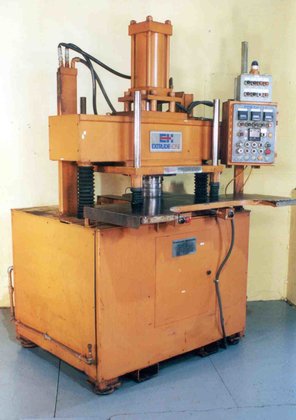

EXTRUDE 12 " # /8
Location:
Holland, OH
Manufacturer:
EXTRUDE
Model:
12
Capacity:
15 GPM

Specifications

Condition:
used
Stock number:
14802
Motor:
20 HORSEPOWER
Serial:
P86-0431
Model 2:
12/8 SPECTRUM
Year new:
1985
Maximum opening:
28-3/4"
Overall bed area:
63-1/4" LR X 50-1/2" FB
Floor to work table:
52"
Media pressure range:
250 TO 1600 PSI
Hydraulic pump capacity:
15 GPM
Media cylinder capacity:
1357 CU. IN.
Media cylinder diameter:
12"
Media displacement counter:
YES
Cycle timer & cycle counter:
YES
Distance between clamp rods:
42-3/4"
Hydraulic cylinder diameter:
8"
Distance between guide posts:
28-3/4" LR X 22-3/4" FB
Overall height (open / closed):
130" / 106"
Subcategory:
Hones

Description

SERIAL ............................... P86-0431
MODEL ................................ 12/8 SPECTRUM
YEAR NEW ............................. 1985
MAXIMUM OPENING ...................... 28-3/4"
MEDIA CYLINDER DIAMETER .............. 12"
MEDIA CYLINDER CAPACITY .............. 1357 CU. IN.
MEDIA PRESSURE RANGE ................. 250 TO 1600 PSI
HYDRAULIC CYLINDER DIAMETER .......... 8"
HYDRAULIC PUMP CAPACITY .............. 15 GPM
HYDRAULIC CLAMPING FORCE @ 1800 PSI .. 146242 LBS.
OVERALL HEIGHT (OPEN / CLOSED) ....... 130" / 106"
DISTANCE BETWEEN GUIDE POSTS ......... 28-3/4" LR X 22-3/4" FB
DISTANCE BETWEEN CLAMP RODS .......... 42-3/4"
OVERALL BED AREA ..................... 63-1/4" LR X 50-1/2" FB
FLOOR TO WORK TABLE .................. 52"
ATHENA DIGITAL TEMPERATURE CONTROL ... YES
CLAMP & MEDIA PRESSURE ADJUSTMENT .... YES
CYCLE TIMER & CYCLE COUNTER .......... YES
MEDIA DISPLACEMENT COUNTER ........... YES
MOTOR ................................ 20 HORSEPOWER
