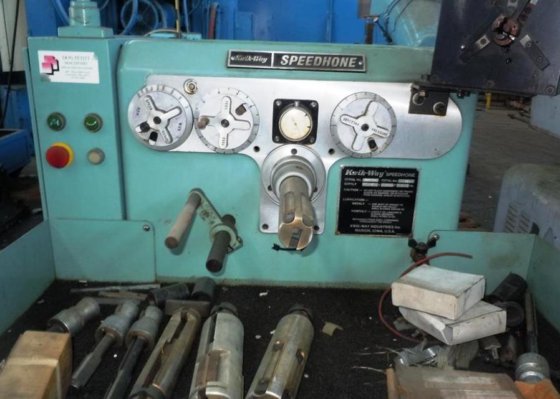

KWIK WAY MODEL 085 AUTO/STROKE
Location:
Holland, OH
Manufacturer:
KWIK WAY
Model:
085
Capacity:
12 GAL

Specifications

Condition:
used
Serial number:
6041-10
Stock number:
19443
Chuck:
4-WAY ADJUSTABLE
Year new:
1991
Coolant pump:
1/3 HORSEPOWER
Spindle motor:
1 HORSEPOWER
Spindle speed:
250 - 1000 RPM - INFINITELY VARIABLE
Stone feed up:
POSITIVE THREADED ADJUSTMENT OF STONE
Stroke length:
INFINITELY ADJ. FROM 0" TO 6"
Stroking motor:
1/4 HORSEPOWER
Coolant capacity:
12 GAL
Coolant filtration:
3 STAGE INCLUDING BAR MAGN3ET & SETTLING
Stroke rate (per min):
43 AND 380 BOUDLE STROKES
Mandrel diameter range:
045" TO 3.50"
Subcategory:
Hones

Description

SERIAL NUMBER ............... 6041-10
MODEL ....................... 085
YEAR NEW .................... 1991
MANDREL DIAMETER RANGE ...... .045" TO 3.50"
SPINDLE SPEED ............... 250 - 1000 RPM - INFINITELY VARIABLE
THROUGHOUT THE RANGE
STROKE LENGTH ............... INFINITELY ADJ. FROM 0" TO 6"
STROKE RATE (PER MIN) ....... 43 AND 380 BOUDLE STROKES
INFINITELY VARIABLE
DIAL INDICATOR GRADUATED FOR IN-PROCESSING GAUGING (EACH MARK EQUALS
.0001)
COOLANT CAPACITY ............ 12 GAL
COOLANT FILTRATION .......... 3 STAGE INCLUDING BAR MAGN3ET & SETTLING
BAFFLES
STONE FEED UP ............... POSITIVE THREADED ADJUSTMENT OF STONE
FEED IN CONJUNCTION W/DIAL INDICATOR
CHUCK ....................... 4-WAY ADJUSTABLE
SPINDLE MOTOR ............... 1 HORSEPOWER
STROKING MOTOR .............. 1/4 HORSEPOWER
COOLANT PUMP ................ 1/3 HORSEPOWER
