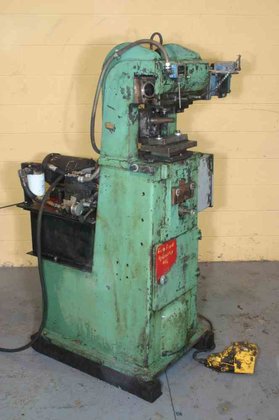

Schmidt 175 HI DUTY MODEL
Location:
Holland, OH
Manufacturer:
Schmidt
Model:
175 HI DUTY

Specifications

Condition:
used
Stock number:
50523
Serial:
4274
Main motor:
3 HORSEPOWER
Table size:
10" X 6"
Table rise by hand:
4"
Distance between housing:
10"
Table rise hydraulically:
1/2"
Adjustable table pressure:
UP TO 12000 LBS
Variable speed of die slide:
1" STROKE AT 90 SPM
Die slide (adjustable stroke):
3/8" TO 7"
Variable speed of die slide 2:
6" STROKE AT 15 SPM
Subcategory:
Marking machines

Description

SERIAL ............................ 4274
MODEL ............................. 175 HI DUTY
ADJUSTABLE TABLE PRESSURE ......... UP TO 12000 LBS
DISTANCE BETWEEN HOUSING .......... 10"
TABLE SIZE ........................ 10" X 6"
TABLE RISE HYDRAULICALLY .......... 1/2"
TABLE RISE BY HAND ................ 4"
DIE SPACE FROM TABLE TO SLIDE FACE. 8"
DIE SLIDE (ADJUSTABLE STROKE) ..... 3/8" TO 7"
VARIABLE SPEED OF DIE SLIDE ....... 1" STROKE AT 90 SPM
VARIABLE SPEED OF DIE SLIDE ....... 6" STROKE AT 15 SPM
MAIN MOTOR ........................ 3 HORSEPOWER
