Paxson 36" X6" SLITTING LINE
Location:
Holland, OH
Manufacturer:
Paxson
Capacity:
10,000 LBS

Specifications

Condition:
used
Stock number:
57407
Face:
42"
Motor:
3 HP / 220/440 / 3 / 60
Serial:
234
Motor 2:
25 HP / 220/440 / 3 / 60 HZ
Motor 3:
3 HP / 220/440 / 6 / 60 HZ
Capacity:
10,000 LBS
Dc drive:
60 / 75 HP
Arbor dia:
6"
Arm length:
54"
Hand of line:
L TO R
Mandrel face:
48"
Max coil dia:
48"
Mandrel face 2:
42"
Nax coil width:
36"
Induction motor:
1745 RPM
Capacity mild steel:
(10) CUTS .125 MILD STEEL
Variable speed motor:
400 / 1600 RPM
2) powered entry rolls:
4" DIA
Foote bros gear box with:
40.7 - 20.9 RATIO
Hyd expansion taper shoe:
16" - 21"
Subcategory:
Slitting lines

Description

SERIAL ............................... 234
CAPACITY MILD STEEL .................. (10) CUTS .125 MILD STEEL
(25) CUTS .050 MILD STEEL
HAND OF LINE ......................... L TO R
CONSISTS OF:
UNCOILER:
CAPACITY ............................. 10,000 LBS
MANDREL FACE ......................... 48"
HYD EXPANSION TAPER SHOE ............. 16" - 21"
MAX COIL DIA ......................... 48"
NAX COIL WIDTH ....................... 36"
DRAG BRAKE BAND TYPE
(4) KEEPERS
SPRING LOADED SEGMENTS
MOTOR ................................ 3 HP / 220/440 / 3 / 60
PULL THRU TYPE SLITTING HEAD:
ARBOR DIA ............................ 6"
FACE ................................. 42"
THREAD UP DRIVE
(2) POWERED ENTRY ROLLS .............. 4" DIA
MANUAL ADJUSTMENT
SPRING LOADED
MANUAL ADJUSTED EDGE GUIDES
(2) MANUAL ADJUSTED EXIT PINCH ROLLS .. 4" DIA
INDUCTION MOTOR ...................... 1745 RPM
FOOTE BROS GEAR BOX WITH ............. 40.7 - 20.9 RATIO
MOTOR ................................ 25 HP / 220/440 / 3 / 60 HZ
ROTARY SCRAP CHOPPER

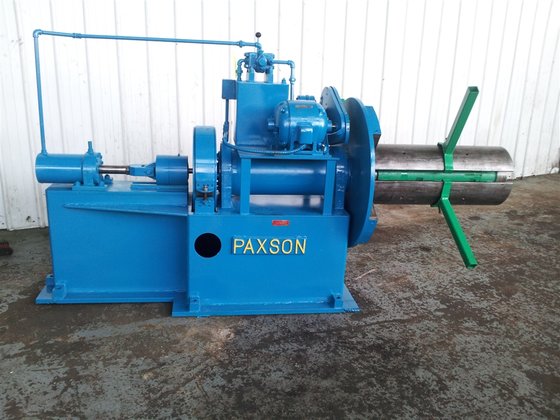

RECOILER:
MANDREL FACE ......................... 42"
MANUAL GRIP WITH HYD PUSH OFF
MOTOR ................................ 3 HP / 220/440 / 6 / 60 HZ
AIR DROP OVERARM SEPARATOR
DC DRIVE ............................. 60 / 75 HP
FAIRBANKS DXZD TYPE MOTOR THRU A FOOTE BROS GEAR BOX
VARIABLE SPEED MOTOR.................. 400 / 1600 RPM
MG SET MOTOR CONTROLLER
AC RECTIFIED TO DC
TURNSTILE:
(3) ARM MANUALLY OPERATED
ARM LENGTH ........................... 54"
TOOLING:
KNIVES
SPACERS
RUBBERS
