1999 HEIAN ZR 342 P

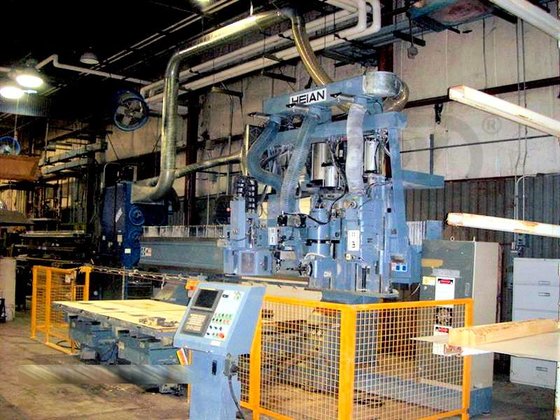

1999 HEIAN ZR 342 P CNC ROUTER (TWIN TABLE & MULTI SPINDLE) [RC-011925] in United States

Location:
United States
Price:
$37,900 USD
Manufacturer:
HEIAN
Model:
ZR 342 P

Specifications

Condition:
used
Year:
1999
Recnum:
RC-011925
Comments:
A 1999 HEIAN can be considered as "good & solid" as many of the other well known brands!
Machtype:
CNC ROUTER (TWIN TABLE & MULTI SPINDLE)
Condition info:
(3-6) Good Condition [6]
Current status:
Active
Elect./voltage:
460 V, 60 Cy, 3 Ph.
Appr. repl. cost:
260000

Description

Twin 63" (1,600 mm) x 63" (1,600 mm) moving tables, heavy duty fixed bridge design in a left-to-right configuration; tables can operate independently for unload/load on one while the other is in process or locked together as one table to machine 5' x 10' material.

-- Equipped with: Spindle #1 - 7.5 kW (10 HP) router, spindle with a 8-station tool changer #2 - 5.5 kW (7.5 HP) horizontal router, and spindle #3 - 7.5 kW (10 HP) QTC router; all spindles 1,000 - 18,000 RPM.

-- All axes utilize FANUC brushless AC Servo motors with matching Servo amplifiers driving precision ground ball screws, and ride on large rectangular tank type ways; ballnut and way bearings are serviced by an automatic lubrication system.

-- FANUC "18i" CNC control with 9" monochrome CRT, 3-axis simultaneous motion, linear and circular interpolation, inch/metric programming, RS-232 port for PC communication, and feed rate and spindle speed override.

-- Comes complete with: 20 HP DEKKER vacuum pump system, assortment of collets, TORIT 3 HP dust collector (480V, 3 Phase), Spare ball screw for the bridge and technical manuals.

-- Full model# is "ZR 342 PHRMO".
