Location:
Dundee, FL
Model:

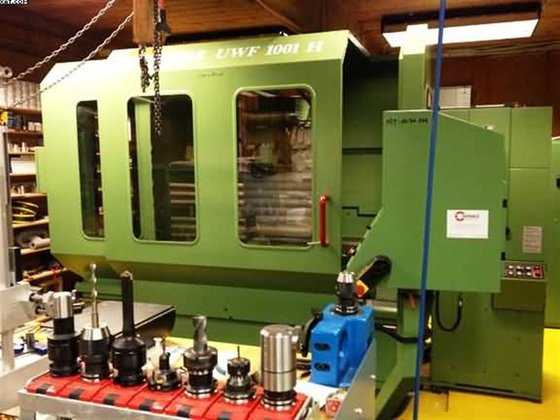

UWF 1001 Heidenhain 415
Spindle Taper:
CAT 40

Specifications

Condition:
used
Year:
1996
X-axis:
27.6"
Y-axis:
21.7"
Z-axis:
19.7"
Equipment:
Full 4th Axis Rotary Table Both Table and Head Tilt Manually Either Vertical or Horizontal Head Capable Heidenhain Part Probing Option 3 Step Gearbox RS232 Port Interface New Color Monitor 30" x 20" x 1" Aluminum Rectangular Plate 20" OD Additional Round Surface Plate Miscellaneous Parts/Fixturing 3070 Total Power on Hours ONLY about 1500 Actual Spindle Run Hours
Table load:
n/a
Table size:
20" Diameter Round
Spindle motor:
15 HP
Spindle speed:
4,200 RPM
Spindle taper:
CAT 40
Machine weight:
8,818 lbs
Cutting feed rates:
197 IPM
Rapid traverse rates:
393 IPM
B axis table rotation:
.001 Degree Full 4th
Tool magazine capacity:
32 Position ATC
Machine dimensions (l x w):
12' x 8'
Subcategory:
4-axis vmc's

Description

Full 4th Axis Rotary Table
Both Table and Head Tilt Manually
Either Vertical or Horizontal Head Capable
Heidenhain Part Probing Option
3 Step Gearbox
RS232 Port Interface
New Color Monitor
3070 Total Power on Hours
ONLY about 1500 Actual Spindle Run Hours
