Location:
Dundee, FL
Manufacturer:

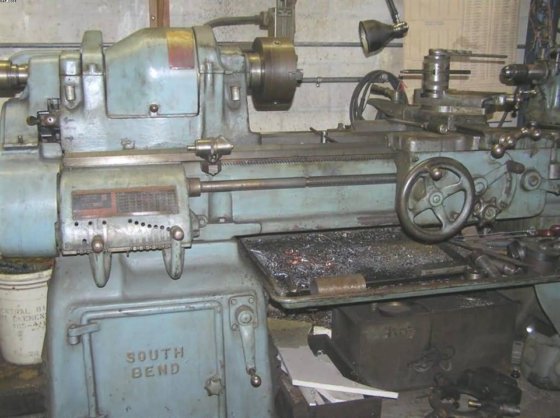

South Bend
Model:
16" Type A Precision Lathe
Spindle Nose:
D1-8

Specifications

Condition:
used
Year:
1949
Equipment:
8" 3 Jaw Chuck 10" Chuck 6.25" Chuck Steady Rest Collet Closer Taper Attachment Lots of Tooling Tailstock 6 Station Turret Compound Tool Post Work Light
Chuck size:
8" 3 Jaw chuck
Spindle hole:
2"
Spindle nose:
D1-8
Threads inch:
1 3/8" to 160 T.P.I.
Spindle motor:
7.5 HP
Spindle speeds:
30 to 1,580 rpm
Swing over bed:
16"
Center distance:
40"
Machine weight aprx.:
5,200 lbs
Swing over cross slide:
10"
Tailstock quill travel:
8"
Tailstock quill dia / size:
2.88" / #5 MT
Subcategory:
Engine lathes
Subcategory 2:
Conventional machines

Description

SPECIFICATIONS:
*Swing Over Bed: 16"
*Swing Over Cross Slide: 10"
*Center Distance: 40"
*Spindle Hole: 2"
*Spindle Speeds: 30 to 1580 RPM
*Spindle Nose: D1-8
*Spindle Motor: 7.5 HP
*Tailstock Quill Diameter / Taper: 2.88" / #5MT
*Tailstock Quill Travel: 8"
*Threads Inch: 1-3/8" to 160 TPI
*Machine Weight (Approx.): 5200 lbs
This machine is equipped with the following options:
*8" 3 Jaw Chuck
*10" Chuck
*6.25" Chuck
*Steady Rest
*Collet Closer
*Taper Attachment
*Lots of Tooling
*Tailstock
*6 Station Turret Compound
*Tool Post
*Work Light
