1995 SCHELLING FI-330/330 FRONT LOAD,

1995 SCHELLING FI-330/330 FRONT LOAD, AUTO. PANEL SAW [PK-010955] in United States

Location:
United States
Price:
$29,700 USD
Manufacturer:
Schelling
Model:
FI-330/330

Specifications

Condition:
used
Year:
1995
Recnum:
PK-010955
Comments:
Refurbished in 2009.
Machtype:
FRONT LOAD, AUTO. PANEL SAW
Condition info:
(6-8) Very good condition [8]
Current status:
Active
Elect./voltage:
230 or 460 V, 60 Cy, 3 Ph.
Appr. repl. cost:
99000

Description

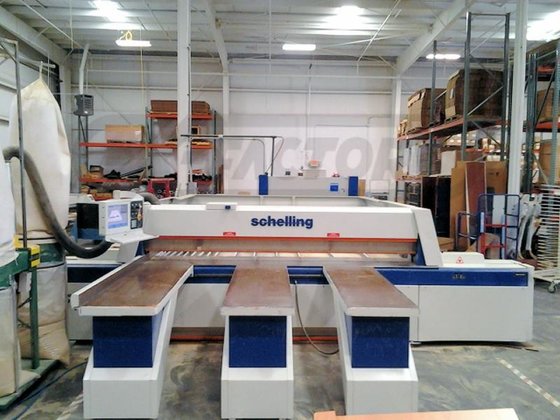

SCHELLING FI-330/330 Front Load Auto Panel Saw

-- 130" Rip cutting capacity & pull-back; 3.3" (85 mm) max. saw blade projection (3"/ 80 mm cutting height); 15 HP (11 kW) main saw motor & 2.5 HP (1.5 kW) scoring saw motor; 14" (350 mm) dia. main blade (5,000 RPM) & 8" (200 mm) dia. scoring blade (6,600 RPM).

-- Features: Variable saw carriage travel speed 0 - 197 FPM (0-60 MPM), constant return of 197 FPM (60 MPM); electronically controlled overhead program fence, rack & pinion driven on both sides, forward speed 0 - 197 FPM (0-60 MPM), return speed 197 FPM (60 MPM); (6) gripper clamps (open up to 3.125").

-- SCHELLING "COMPOSER" Electronic control with color monitor integrated into operator control panel (displays cutting dimensions), (400) cutting patterns with (50) different dimensions for ea. pattern (5,000 total cutting lines expandable), self-diagnostic in clear text, data input by keyboard or direct downloading from office PC is possible.

-- Includes: 90.6" (2,300 mm) Long cross-cut fence (front-to-back); (2) automatic side/cross-cut aligners, (3) front mounted air float tables 24" x 78" (609 x 1,981 mm) each.

-- Rear of machine with (16) support rails with combi-rollers; enclosed for safety with man-height sheet metal panels.

-- Options Include: Several sets of main & scoring blades (as pictured).

-- Please note this machine was refurbished in 2009.
