Location:
Dundee, FL
Model:

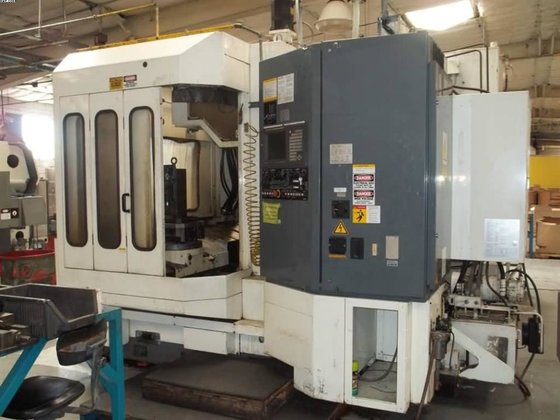

H400 Fanuc 15M
Spindle Taper:
BT # 40

Specifications

Condition:
used
Year:
1998
Equipment:
100 Position Toolchanger Full 4th Axis Rotary Table Coolant Through Spindle 9.5" Color Monitor Rigid Tapping RS 232 Port Interface Chip Conveyor All Available Manuals
Spindle motor:
20 HP
Spindle speed:
20 to 10,000 RPM
Spindle taper:
BT # 40
X-axis travel:
24.02"
Y-axis travel:
20.08"
Z-axis travel:
20.08"
Machine weight:
22,000 lbs.
Pallet indexing:
.001 Degree Index
Tool change time:
1.7 seconds
Pallet change time:
10 seconds
Maximum pallet load:
880 lbs.
Rapid traverse rates:
949 IPM
Number of tool positions:
100 Position ATC
Spindle nose to table top:
2" - 21.8"
Machine dimensions l x w x h:
15' x 8' x 10'
Pallet size / number of pallets:
15.7" x15.7" / 2 plt

Description

100 Position Toolchanger
Full 4th Axis Rotary Table
Coolant Through Spindle
9.5" Color Monitor
Rigid Tapping
Chip Conveyor
Please Double Check Specs to Your Liking
All Available Manuals
All Available Tooling
